FGL.3K.303.KYMC10

Active

LEMO

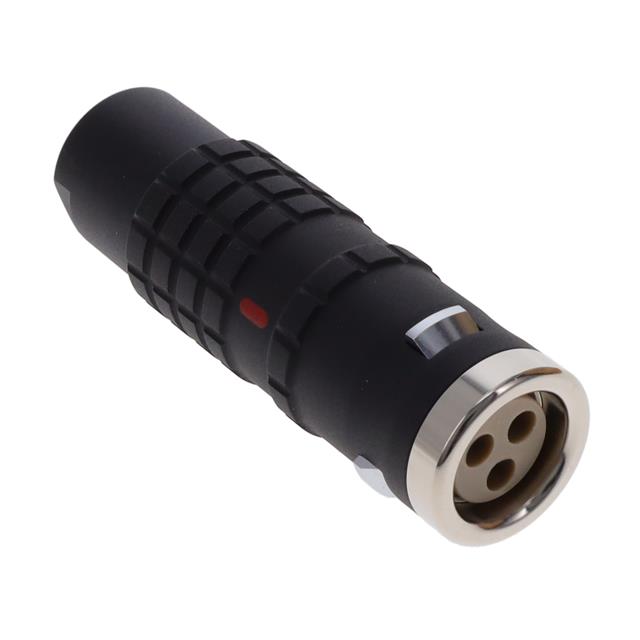

CONN INLINE PLUG 3SKT SLD CUP

Deep-Dive with AI

Search across all available documentation for this part.

FGL.3K.303.KYMC10

Active

LEMO

CONN INLINE PLUG 3SKT SLD CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 132.38

Description

General part information

FGL.3K Series

3 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGL.3K.303.KYMC10	FGL.3K Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	10.1 mm
Cable Opening	-	0.398 in
Cable Opening	-	10.5 mm
Cable Opening	-	0.413 in
Cable Opening	-	7 mm
Cable Opening	-	0.26 in
Cable Opening	-	0.276 in
Cable Opening	-	6.6 mm
Cable Opening	-	0.555 - 15 mm
Cable Opening [Max] [diameter]	10 mm	10 mm
Cable Opening [Max] [diameter]	0.394 in	0.394 in
Cable Opening [Min] [diameter]	9.6 mm	9.6 mm
Cable Opening [Min] [diameter]	0.378 in	0.378 in
Color	Silver	Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	25 A	9 - 35 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 12
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	L	L
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	302 - 312
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGL.3K Series

CONN PLUG FMALE 2P GOLD SLDR CUP

Part	Connector Type	Primary Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Shell Finish	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Contact Material	Number of Positions	Orientation	Shell Material	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Shielding	Backshell Material, Plating	Features	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Termination	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO FGL.3K.302.CLLC11Z	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP66/IP68	10.1 mm	0.398 in	10.5 mm	0.413 in	Chrome	UL94 V-0	59 Áin	1.5 Ám	302	Bronze	2	L	Brass	35 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver
LEMO FGL.3K.308.CLLC70	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP66/IP68					Chrome	UL94 V-0	59 Áin	1.5 Ám	308	Bronze	8	L	Brass	13 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver	7 mm	0.26 in	0.276 in	6.6 mm
LEMO FGL.3K.304.CYMC11Z	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP66/IP68	10.1 mm	0.398 in	10.5 mm	0.413 in	Chrome	UL94 V-0	59 Áin	1.5 Ám	304	Bronze	4	L	Brass	19 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver					Crimp
LEMO FGL.3K.310.CYMK15	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP66/IP68					Chrome	UL94 V-0	59 Áin	1.5 Ám	310	Bronze	10	L	Brass	12 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver					Crimp	0.555 in, 0.591 in, 14.1 mm, 15 mm
LEMO FGL.3K.312.CYMC90Z	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP66/IP68					Chrome	UL94 V-0	59 Áin	1.5 Ám	312	Bronze	12	L	Brass	9 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver					Crimp
LEMO FGL.3K.303.KYMC10	Female Sockets, Plug	Metal	Polyetheretherketone (PEEK)	-55 °C	200 °C	Push-Pull	IP68 - Dust Tight, Waterproof					Chrome	UL94 V-0			303	Bronze		L	Brass	25 A	Gold	Free Hanging (In-Line)	Shielded	Brass, Chrome	Backshell	Silver					Crimp		10 mm	9.6 mm	0.378 in	0.394 in
