396-074-559-812
ActiveEDAC Inc.

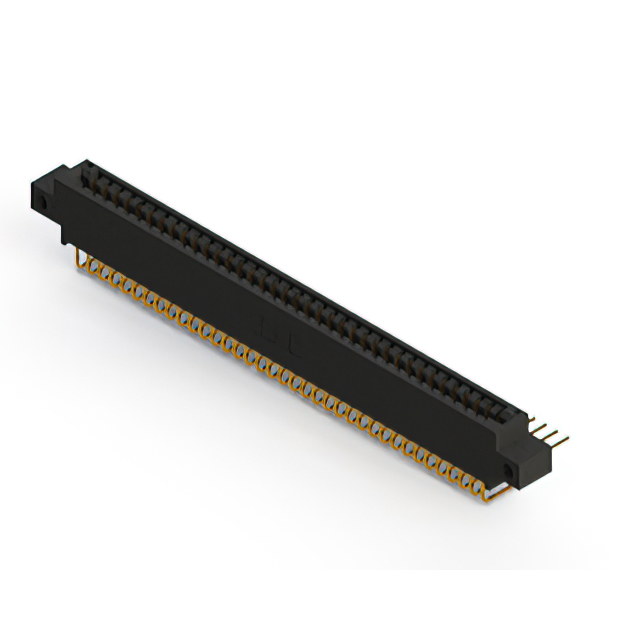

CONN EDGE DUAL FMALE 74POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-074-559-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-074-559-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
396-074 Series
...
| Part | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Material - Insulation | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Type | Features | Termination | Color | Mounting Type | Gender | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Card Extender | Solder | Black | Board Edge Straddle Mount | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Wire Wrap | Black | Through Hole | Female | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Wire Wrap | Black | Through Hole | Female | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Card Extender | Solder | Black | Board Edge Straddle Mount | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Solder Wire Wrap | Black | Through Hole Right Angle | Female | 3.25 mm | 0.128 in | Side Mount Opening Unthreaded | |||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Solder | Black | Through Hole | Female | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Solder | Black | Through Hole | Female | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Solder | Black | Through Hole | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Solder Wire Wrap | Black | Through Hole Right Angle | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 10 Áin | 0.25 Ám | 2 | Gold | 74 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | -40 °C | 105 ░C | Dual | Polyester Thermoplastic | 0.125 in | 3.18 mm | 37 | 37 | 37 | Non Specified - Dual Edge | Card Guides | Solder Wire Wrap | Black | Through Hole Right Angle | Female | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.20 | |
Description
General part information
396-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
