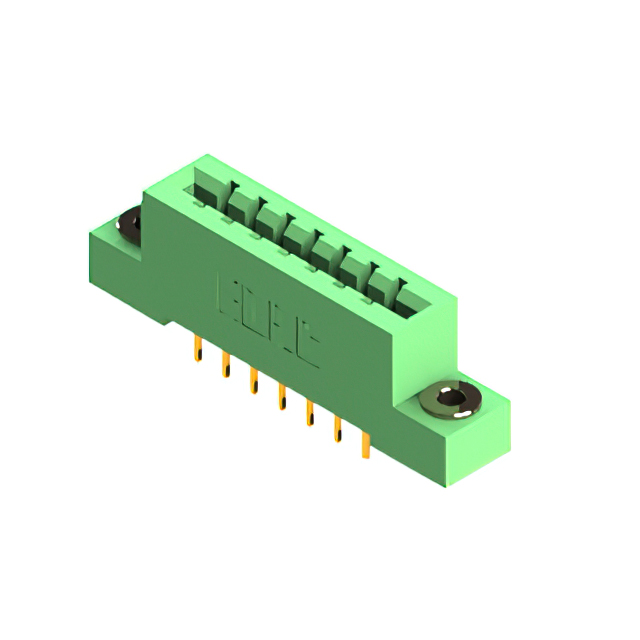

837-007-558-103
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-007-558-103
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-007-558-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-007 Series
| Part | Contact Type | Gender | Read Out | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Contact Material | Color | Card Type | Contact Finish | Number of Positions/Bay/Row [custom] | Termination Rows | Mounting Type | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | ||
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm |
EDAC Inc. | Cantilever | Female | Single | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.116 in | 2.95 mm |
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.128 " | 3.25 mm |
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.116 in | 2.95 mm |
EDAC Inc. | Cantilever | Female | Single | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | ||
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | ||
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | |||
EDAC Inc. | Cantilever | Female | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | 1 | 7 | Copper Alloy | Green | Non Specified - Single Edge | Gold | 7 | 1 | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 53.05 | |
Description
General part information
837-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
