637-044-332-248
ActiveEDAC Inc.

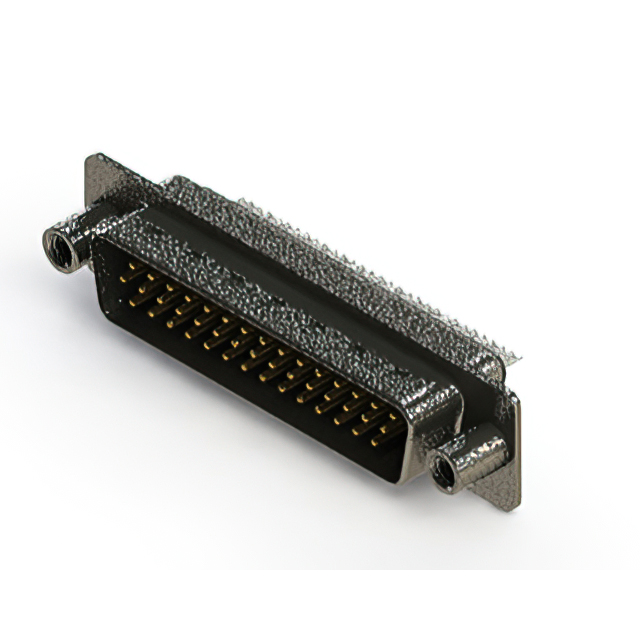

D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40, PLUG,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
637-044-332-248
ActiveEDAC Inc.
D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40, PLUG,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 637-044-332-248 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Shielded |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
637-044 Series
...
| Part | Dielectric Material | Connector Type | Contact Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish Thickness | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish | Shell Material, Finish | Connector Style | Contact Material | Flange Feature | Mounting Type | Features | Current Rating (Amps) | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | Flash | 3 | B DB | UL94 V-0 | Gold | Nickel Plated Steel | D-Sub High Density | Brass | 4-40 | Free Hanging (In-Line) | Grounding Indents Shielded | 3 A | 3 | |||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | Flash | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 Board Side | Free Hanging (In-Line) | Grounding Indents Shielded | 3 A | 3 | ||||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 125 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 | Panel Mount Through Hole | Board Lock Grounding Indents Shielded | 3 A | 3 | Solder | 15 µin | 0.38 µm | ||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 | Free Hanging (In-Line) | Grounding Indents Shielded | 3 A | 3 | 15 µin | 0.38 µm | |||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 125 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 | Panel Mount Through Hole | Grounding Indents Shielded | 3 A | 3 | Solder | 15 µin | 0.38 µm | ||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Grounding Indents Shielded | 3 A | 3 | Solder | 30 Áin | 0.76 Ám | ||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 125 °C | -55 °C | 44 | Flash | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 Board Side | Free Hanging (In-Line) | Grounding Indents Shielded | 3 A | 3 | ||||
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 125 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | Nickel Plated Steel | D-Sub High Density | Brass | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Grounding Indents Shielded | 3 A | 3 | Solder | 30 Áin | 0.76 Ám | |
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | Nickel Plated Steel | D-Sub High Density | Brass | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Grounding Indents Shielded | 3 A | 3 | Solder | 30 Áin | 0.76 Ám | |
EDAC Inc. | Polyester Thermoplastic | Male Pins Plug | Signal | Black | 85 °C | -55 °C | 44 | 3 | B DB | UL94 V-0 | Gold | D-Sub High Density | Brass | 4-40 Board Side | Panel Mount Through Hole | Grounding Indents Shielded | 3 A | 3 | Solder | 30 Áin | 0.76 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 8.87 | |
Description
General part information
637-044 Series
44 Position D-Sub, High Density Plug, Male Pins Connector
