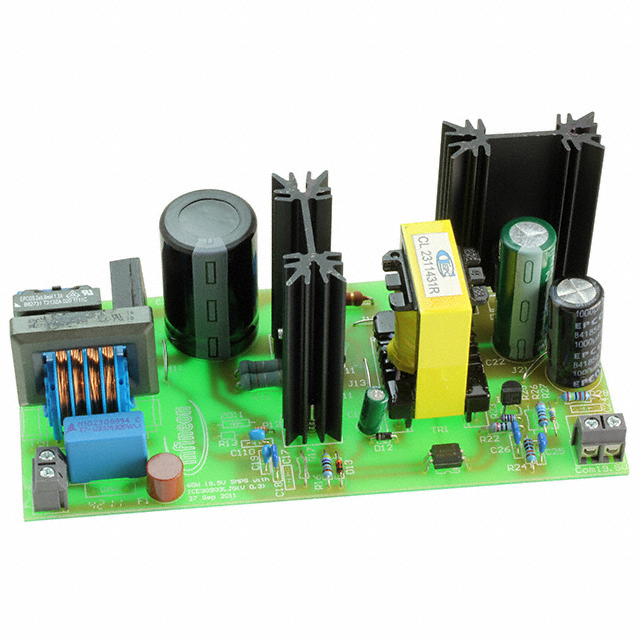

EVAL3GS03LJGTOBO1
ActiveInfineon Technologies
65W SMPS EVALUATION BOARD USING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVAL3GS03LJGTOBO1
ActiveInfineon Technologies
65W SMPS EVALUATION BOARD USING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL3GS03LJGTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3.34 A |
| Frequency - Switching | 130 kHz |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ICE3GS03LJG |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 19.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 132.00 | |
Description
General part information
EVAL3GS03 Series
ICE3GS03LJG - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
