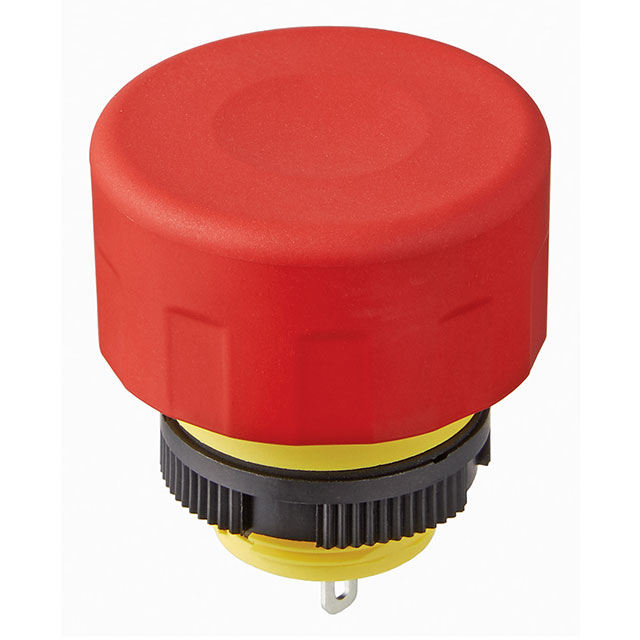

FF0116BBCEEA01

Active

NKK Switches

SW E-STOP TWIST RESET 500MA 24V

Search across all available documentation for this part.

Active

NKK Switches

SW E-STOP TWIST RESET 500MA 24V

Technical Specifications

Parameters and characteristics for this part

Specification	FF0116BBCEEA01

Circuit	SPST-NC
Current Rating (Amps)	500 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - DC	24 V

Part	Ingress Protection	Termination Style	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Reset Operation	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Current Rating (Amps)	Switch Function
NKK Switches FF0116BBCEEA01	IP65 - Dust Tight Water Resistant	Solder Lug	24 V	-25 °C	60 °C	Twist	Panel Mount Front	16.2 mm	SPST-NC	500 mA	On-Off
NKK Switches FF0116BBCAEA01	IP65 - Dust Tight Water Resistant	Solder Lug	24 V	-25 °C	60 °C	Twist	Panel Mount Front	16.2 mm	SPST-NC	500 mA	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SW E-STOP TWIST RESET 500MA 24V
