SSB-LX2450YW

Active

Lumex Opto/Components Inc.

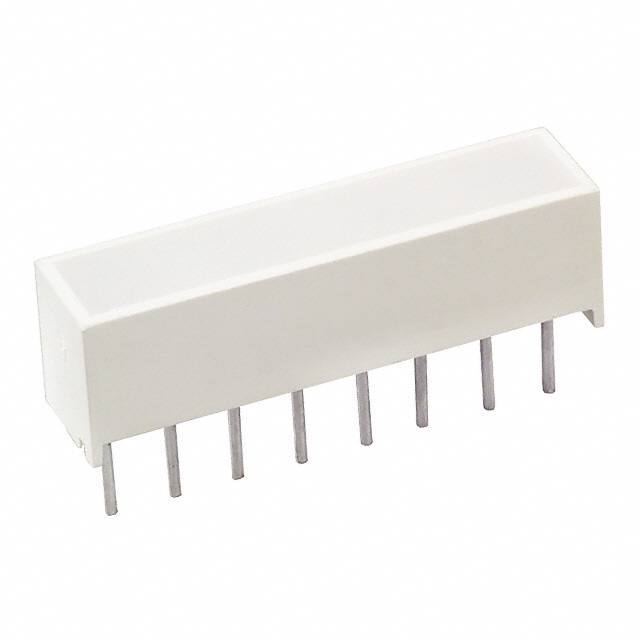

LED LT BAR 5X20MM 4CHIP YEL DIFF

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED LT BAR 5X20MM 4CHIP YEL DIFF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Yellow Diffused, White 2.1V 30mA Rectangle with Flat Top Through Hole

Technical documentation and resources

No documents available

Part	Color	Lens Size [y]	Lens Size [x]	Voltage Rating	Millicandela Rating	Lens Style	Mounting Type	Lens Type	Wavelength - Peak	Configuration	Viewing Angle	Current
Lumex Opto/Components Inc. SSB-LX2450SYW	Yellow	3.81 mm	19.05 mm	2 V	200 mcd	Rectangle with Flat Top	Through Hole	Diffused, White	590 nm	Bar - Single, SIP	160 °
Lumex Opto/Components Inc. SSB-LX2450YW	Yellow			2.1 V	40 mcd	Rectangle with Flat Top	Through Hole	Diffused, White	585 nm	Bar - Single, SIP	160 °	30 mA
