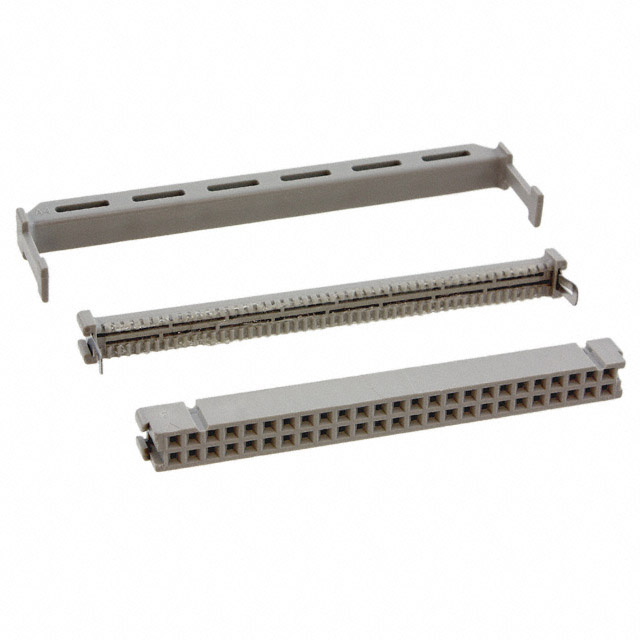

3425-6050

Active

3M (TC)

CONN RCPT 50P IDC 26-30AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 50P IDC 26-30AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Number of Rows	Contact Finish	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Row Spacing [x]	Row Spacing	Features	Contact Type	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Mounting Type	Wire Gauge
3M (TC) 3425-6050	IDC	2	Gold	Ribbon Cable	26 AWG	30 AWG	0.1 in	2.54 mm	Feed Through Strain Relief	Female Socket	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	50	Receptacle	Free Hanging (In-Line)
3M (TC) 3425-7600	IDC	2	Gold	Ribbon Cable	26 AWG	30 AWG	0.1 in	2.54 mm		Female Socket	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	50	Receptacle	Free Hanging (In-Line)
3M (TC) 3425-H650	IDC	2	Gold	Ribbon Cable	26 AWG	28 AWG	0.1 in	2.54 mm	Feed Through Polarizing Key Strain Relief	Female Socket	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	50	Receptacle	Free Hanging (In-Line)	Solid Stranded
3M (TC) 3425-G600	IDC	2	Gold	Ribbon Cable	26 AWG	28 AWG	0.1 in	2.54 mm	Feed Through Polarizing Key	Female Socket	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	50	Receptacle	Free Hanging (In-Line)	Solid Stranded
3M (TC) 3425-6000	IDC	2	Gold	Ribbon Cable	26 AWG	30 AWG	0.1 in	2.54 mm	Feed Through	Female Socket	2.54 mm	0.1 in	Gray	0.76 Ám	30 Áin	50	Receptacle	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Receptacle Connector IDC Gold 26-30 AWG

Technical documentation and resources
