D38999/24FE8SAL

Active

Amphenol Aerospace Operations

D38999 SER III RECEPTACLE THREAD

D38999/24FE8SAL

Active

Amphenol Aerospace Operations

D38999 SER III RECEPTACLE THREAD

Description Specifications Series Pricing CAD Documents

Description

General part information

D38999/24FE Series

8 Position Circular Connector Receptacle Housing Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FE8SAL

Connector Type	Receptacle Housing
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Threaded
Grade	Military
Housing Color	Silver
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	8
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Nickel
Shell Material	Aluminum
Shell Size - Insert Length	17 mm
Shell Size - Insert Width	8 mm
Shell Size (MIL)	E
Type	For Female Sockets

D38999/24FE Series

...

Part	Insert Material	Qualification	Contact Material	Color	Contact Finish Thickness - Mating	Connector Type	Shell Material	Shell Size (MIL)	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Features	Grade	Mounting Feature	Contact Finish - Mating	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection	Mounting Type	Orientation	Shell Finish	Fastening Type	Termination	Primary Material	Number of Positions	Shielding	Contact Type	Note	Type	Contact Shape	Contact Size	Housing Color	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Includes Total Count	Includes	Insert Quantity

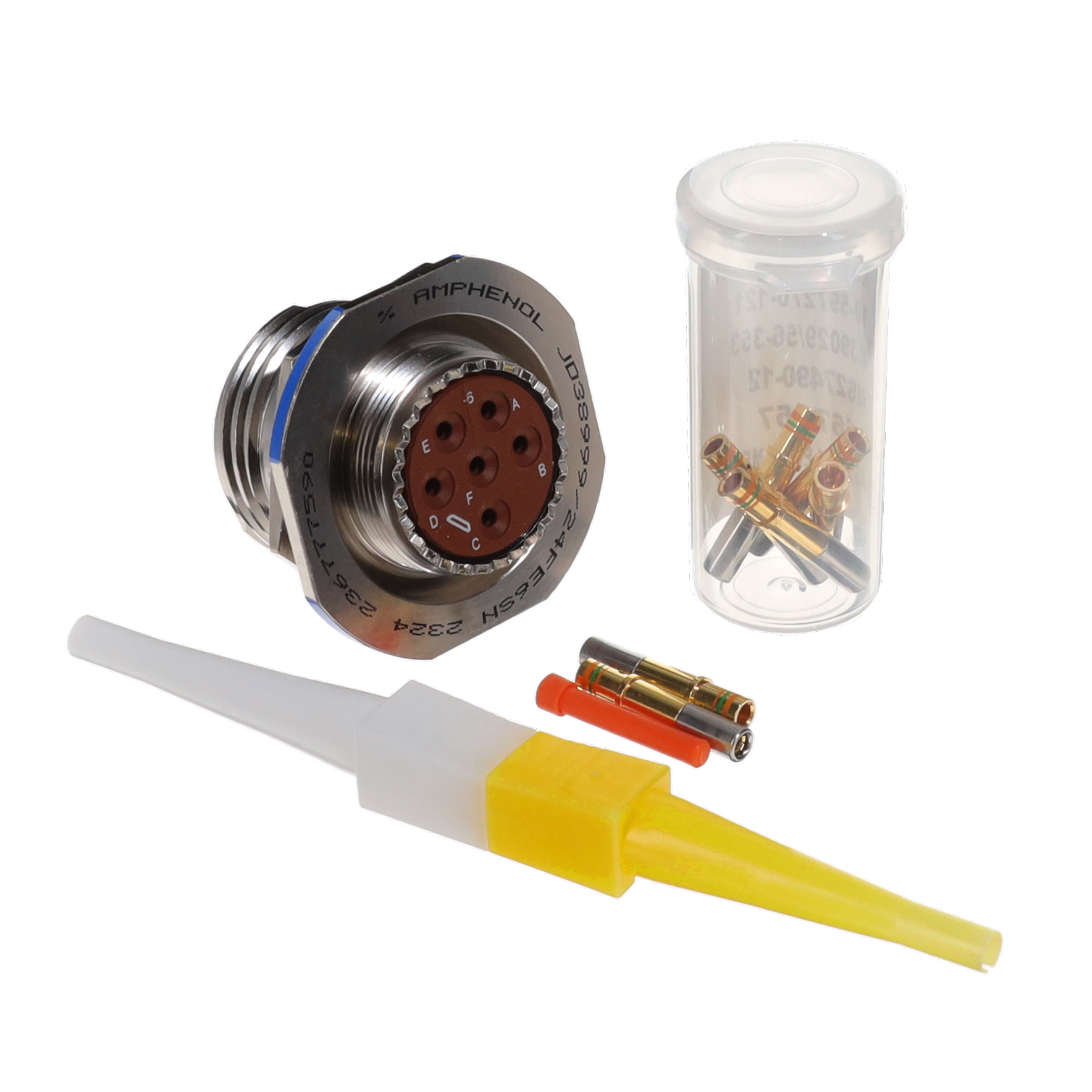

Amphenol Aerospace Operations D38999/24FE6SN	Thermoplastic	MIL-DTL-38999 Series III	Copper Alloy	Silver	50 µin	Female Sockets Receptacle	Aluminum	E	Aerospace Aviation Marine Military	200 °C	-65 °C	Self Locking	Military	Bulkhead Front Side Nut	Gold	17 mm	6 mm	Environment Resistant	Panel Mount	N (Normal)	Electroless Nickel	Threaded	Crimp	Metal	6	Shielded
Amphenol Aerospace Operations D38999/24FE8SAL	Thermoplastic	MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E		200 °C	-65 °C		Military	Bulkhead Front Side Nut		17 mm	8 mm	Environment Resistant	Panel Mount	A	Nickel	Threaded			8	Unshielded	Crimp	Contacts Not Included	For Female Sockets	Circular	16 S	Silver
Amphenol Aerospace Operations D38999/24FE99PAL	Thermoplastic	MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E		200 °C	-65 °C		Military	Bulkhead Front Side Nut				Environment Resistant	Panel Mount	A	Nickel	Threaded			23	Unshielded	Crimp	Contacts Not Included	For Male Pins	Circular	16 20	Silver	17	99
Amphenol Aerospace Operations D38999/24FE8SAL		MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E					Military	Bulkhead Front Side Nut		17 mm	8 mm		Panel Mount	A	Nickel	Threaded		Metal	8		Crimp		For Female Sockets		16 S	Silver
Amphenol Aerospace Operations D38999/24FE8SA	Thermoplastic		Copper Alloy	Silver	50 µin	Female Sockets Receptacle	Aluminum	E	Aviation Marine Military	200 °C	-65 °C			Bulkhead Front Side Nut	Gold	17 mm	8 mm		Panel Mount	A	Nickel	Threaded	Crimp	Metal	8	Shielded									13 A	Dust Tight Waterproof	IP67
Amphenol Aerospace Operations D38999/24FE35SAL
Amphenol Aerospace Operations D38999/24FE26PN		MIL-DTL-38999 Series III	Copper Alloy	Silver	50 µin	Male Pins Receptacle	Aluminum	E	Aerospace Aviation Marine Military	200 °C	-65 °C		Military	Bulkhead Front Side Nut	Gold			Environment Resistant	Panel Mount	N (Normal)	Electroless Nickel	Threaded	Crimp	Metal	26	Shielded							17	26
Amphenol Aerospace Operations D38999/24FE26SNL	Thermoplastic	MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E		200 °C	-65 °C		Military	Bulkhead Front Side Nut				Environment Resistant Waterproof	Panel Mount	N (Normal)	Electroless Nickel Nickel	Threaded		Metal	26	Unshielded	Crimp	Contacts Not Included	For Female Sockets	Circular	20	Silver	17	26				UL94 V-0
Amphenol Aerospace Operations D38999/24FE8PNL	Thermoplastic	MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E		200 °C	-65 °C		Military	Bulkhead Front Side Nut		17 mm	8 mm	Waterproof	Panel Mount	N (Normal)	Electroless Nickel	Threaded		Metal	8		Crimp	Contacts Not Included	For Female Sockets		16 S	Silver						UL94 V-0	1 pcs 1 pc	Insert Shell	1 pcs
Amphenol Aerospace Operations D38999/24FE8PAL	Thermoplastic	MIL-DTL-38999 Series III				Receptacle Housing	Aluminum	E		200 °C	-65 °C		Military	Bulkhead Front Side Nut		17 mm	8 mm	Environment Resistant	Panel Mount	A	Nickel	Threaded			8	Unshielded	Crimp	Contacts Not Included	For Male Pins	Circular	16 S	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/24FE8SAL | Datasheet

Datasheet

D38999/24FE8SAL | Datasheet
