0830786
ActivePhoenix Contact

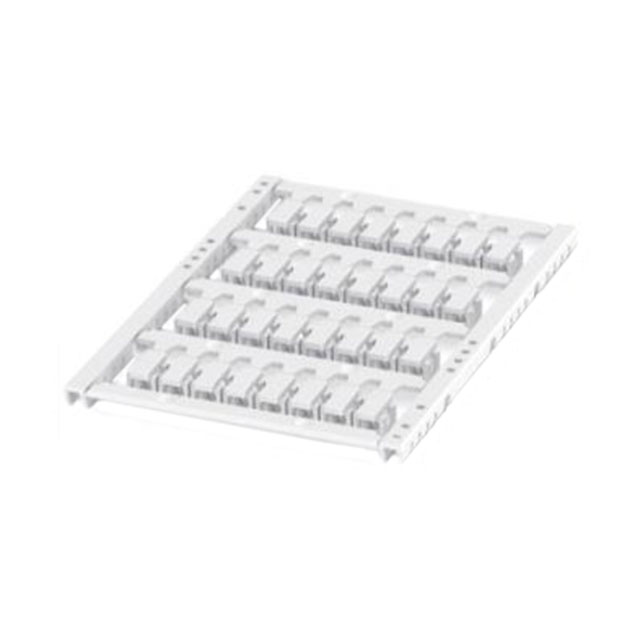

CABLE MARKERS PRE-MARKED CARD CLIP ON POLYCARBONATE WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0830786
ActivePhoenix Contact
CABLE MARKERS PRE-MARKED CARD CLIP ON POLYCARBONATE WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0830786 | UCT-WMCO Series |
|---|---|---|
| Cable Diameter | - | 1.9 mm |
| Cable Diameter [Max] [diameter] | 0.185 in | 0.075 - 0.185 in |
| Cable Diameter [Max] [diameter] | 4.7 mm | 2.9 - 4.7 mm |
| Cable Diameter [Min] [diameter] | 4.1 mm | 1.1 - 4.1 mm |
| Cable Diameter [Min] [diameter] | 0.161 in | 0.043 - 0.161 in |
| Color | White | Yellow, White |
| Legend | Blank | Blank |
| Material | Polycarbonate (PC) | Polycarbonate (PC), Polycarbonate |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size [x] | 0.16 " | 0.16 - 23 " |
| Size [x] | 4 mm | 4 - 18 mm |
| Size [y] | 0.47 " | 0.16 - 4 " |
| Size [y] | 12 mm | 4 - 12 mm |
| Type | Wire Marker, Cable Tie | Wire Marker, Clip-On, Wire Marker, Cable Tie |
UCT-WMCO Series
WIRE MARKER CLIP-ON 4MMX12MM YLW
| Part | Size [x] | Size [x] | Size [y] | Size [y] | Type | Legend | Material | Color | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0831210 | 0.16 " | 4 mm | 0.47 " | 12 mm | Wire Marker, Clip-On | Blank | Polycarbonate (PC) | Yellow | 4.1 mm | 0.185 in | 0.161 in | 4.7 mm | -40 °C | 120 °C | |
Phoenix Contact 0830787 | 0.71 in | 18 mm | 0.16 in | 4 mm | Wire Marker, Cable Tie | Blank | Polycarbonate (PC) | White | 4.1 mm | 0.185 in | 0.161 in | 4.7 mm | -40 °C | 120 °C | |
Phoenix Contact 0831205 | 0.91 in, 23 mm | 0.16 in, 4 mm | Wire Marker, Clip-On | Blank | Polycarbonate (PC) | Yellow | 2 mm | 0.114 in | 0.079 in | 2.9 mm | -40 °C | 120 °C | |||
Phoenix Contact 0830785 | 0.71 in | 18 mm | 0.16 in | 4 mm | Wire Marker, Cable Tie | Blank | Polycarbonate (PC) | White | 3.5 mm | 0.161 in | 0.138 in | 4.1 mm | -40 °C | 120 °C | |
Phoenix Contact 0831209 | 0.71 in | 18 mm | 0.16 in | 4 mm | Wire Marker, Clip-On | Blank | Polycarbonate (PC) | Yellow | 3.5 mm | 0.161 in | 0.138 in | 4.1 mm | -40 °C | 120 °C | |
Phoenix Contact 0831206 | 0.16 " | 4 mm | 0.47 " | 12 mm | Wire Marker, Clip-On | Blank | Polycarbonate (PC) | Yellow | 2.9 mm | 0.138 in | 0.114 in | 3.5 mm | -40 °C | 120 °C | |
Phoenix Contact 0830783 | 0.71 in | 18 mm | 0.16 in | 4 mm | Wire Marker, Cable Tie | Blank | Polycarbonate (PC) | White | 2.9 mm | 0.138 in | 0.114 in | 3.5 mm | -40 °C | 120 °C | |
Phoenix Contact 0832102 | 0.91 in, 23 mm | 0.16 in, 4 mm | Wire Marker, Clip-On | Blank | Polycarbonate | White | 2.9 mm | 0.138 in | 0.114 in | 3.5 mm | -40 °C | 120 °C | |||
Phoenix Contact 0830786 | 0.16 " | 4 mm | 0.47 " | 12 mm | Wire Marker, Cable Tie | Blank | Polycarbonate (PC) | White | 4.1 mm | 0.185 in | 0.161 in | 4.7 mm | -40 °C | 120 °C | |
Phoenix Contact 0832104 | 0.91 in, 23 mm | 0.16 in, 4 mm | Wire Marker, Clip-On | Blank | Polycarbonate | White | 4.1 mm | 0.185 in | 0.161 in | 4.7 mm | -40 °C | 120 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UCT-WMCO Series
Wire Marker, Cable Tie 0.16" W x 0.47" L (4.0mm x 12.0mm) White Polycarbonate (PC)
