0830787

Active

Phoenix Contact

WIRE MARKER CBL TIE 4MM X 18MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0830787

Active

Phoenix Contact

WIRE MARKER CBL TIE 4MM X 18MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 9.50

Description

General part information

UCT-WMCO Series

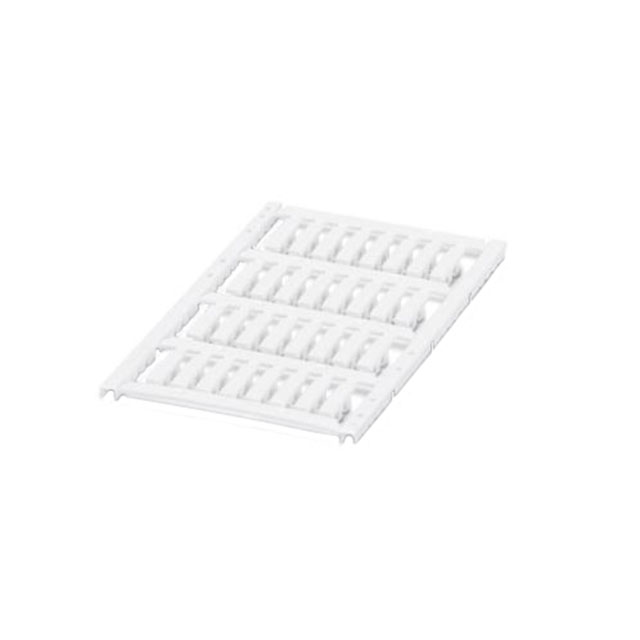

Wire Marker, Cable Tie 0.16" W x 0.71" L (4.0mm x 18.0mm) White Polycarbonate (PC)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0830787	UCT-WMCO Series

Cable Diameter	-	1.9 mm
Cable Diameter [Max] [diameter]	0.185 in	0.075 - 0.185 in
Cable Diameter [Max] [diameter]	4.7 mm	2.9 - 4.7 mm
Cable Diameter [Min] [diameter]	4.1 mm	1.1 - 4.1 mm
Cable Diameter [Min] [diameter]	0.161 in	0.043 - 0.161 in
Color	White	Yellow, White
Legend	Blank	Blank
Material	Polycarbonate (PC)	Polycarbonate (PC), Polycarbonate
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size [x]	18 mm	4 - 18 mm
Size [x]	0.71 in	0.16 - 23 "
Size [y]	0.16 in	0.16 - 4 "
Size [y]	4 mm	4 - 12 mm
Type	Wire Marker, Cable Tie	Wire Marker, Clip-On, Wire Marker, Cable Tie

UCT-WMCO Series

WIRE MARKER CLIP-ON 4MMX12MM YLW

Part	Size [x]	Size [x]	Size [y]	Size [y]	Type	Legend	Material	Color	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 0831210	0.16 "	4 mm	0.47 "	12 mm	Wire Marker, Clip-On	Blank	Polycarbonate (PC)	Yellow	4.1 mm	0.185 in	0.161 in	4.7 mm	-40 °C	120 °C
Phoenix Contact 0830787	0.71 in	18 mm	0.16 in	4 mm	Wire Marker, Cable Tie	Blank	Polycarbonate (PC)	White	4.1 mm	0.185 in	0.161 in	4.7 mm	-40 °C	120 °C
Phoenix Contact 0831205	0.91 in, 23 mm		0.16 in, 4 mm		Wire Marker, Clip-On	Blank	Polycarbonate (PC)	Yellow	2 mm	0.114 in	0.079 in	2.9 mm	-40 °C	120 °C
Phoenix Contact 0830785	0.71 in	18 mm	0.16 in	4 mm	Wire Marker, Cable Tie	Blank	Polycarbonate (PC)	White	3.5 mm	0.161 in	0.138 in	4.1 mm	-40 °C	120 °C
Phoenix Contact 0831209	0.71 in	18 mm	0.16 in	4 mm	Wire Marker, Clip-On	Blank	Polycarbonate (PC)	Yellow	3.5 mm	0.161 in	0.138 in	4.1 mm	-40 °C	120 °C
Phoenix Contact 0831206	0.16 "	4 mm	0.47 "	12 mm	Wire Marker, Clip-On	Blank	Polycarbonate (PC)	Yellow	2.9 mm	0.138 in	0.114 in	3.5 mm	-40 °C	120 °C
Phoenix Contact 0830783	0.71 in	18 mm	0.16 in	4 mm	Wire Marker, Cable Tie	Blank	Polycarbonate (PC)	White	2.9 mm	0.138 in	0.114 in	3.5 mm	-40 °C	120 °C
Phoenix Contact 0832102	0.91 in, 23 mm		0.16 in, 4 mm		Wire Marker, Clip-On	Blank	Polycarbonate	White	2.9 mm	0.138 in	0.114 in	3.5 mm	-40 °C	120 °C
Phoenix Contact 0830786	0.16 "	4 mm	0.47 "	12 mm	Wire Marker, Cable Tie	Blank	Polycarbonate (PC)	White	4.1 mm	0.185 in	0.161 in	4.7 mm	-40 °C	120 °C
Phoenix Contact 0832104	0.91 in, 23 mm		0.16 in, 4 mm		Wire Marker, Clip-On	Blank	Polycarbonate	White	4.1 mm	0.185 in	0.161 in	4.7 mm	-40 °C	120 °C
