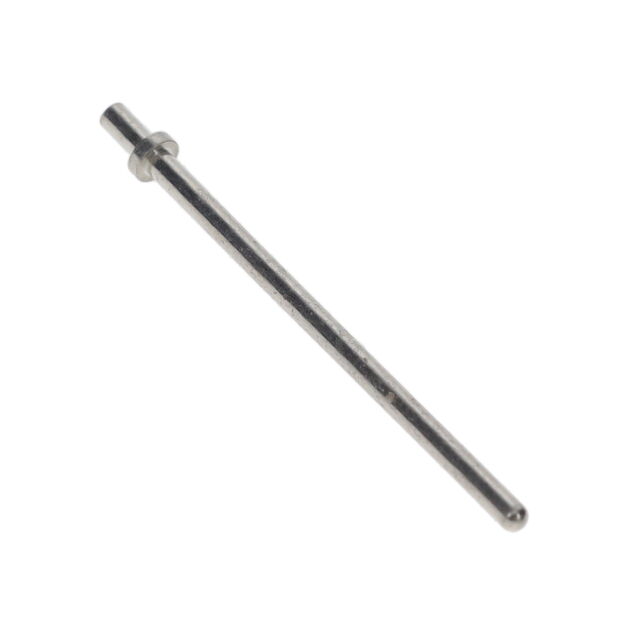

3140-2-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA TINLEAD
Deep-Dive with AI
Search across all available documentation for this part.
3140-2-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA TINLEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3140-2-00-01-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.78 in |
| Length - Above Flange [x] | 19.81 mm |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.79 | |||
| 100 | $ 0.71 | |||
| 1000 | $ 0.51 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.43 | |||
Description
General part information
3140-2 Series
PC Pin Terminal Connector Through Hole Tin-Lead 0.040" (1.02mm) Dia
