KKL-8-RT
ActiveEssentra Access Solutions

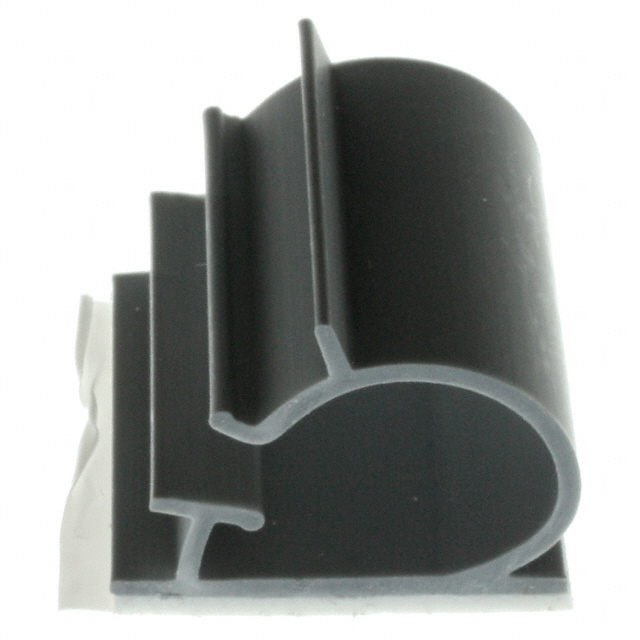

FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, 12.7 MM, PVC (POLYVINYLCHLORIDE), GREY, 25.4 MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDrawing EN
KKL-8-RT
ActiveEssentra Access Solutions
FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, 12.7 MM, PVC (POLYVINYLCHLORIDE), GREY, 25.4 MM
Deep-Dive with AI
DocumentsDrawing EN
Technical Specifications
Parameters and characteristics for this part
| Specification | KKL-8-RT |
|---|---|
| Adhesive | Acrylic Based (RMS-15) |
| Color | Gray |
| Features | Flame Retardant |
| Length [x] | 1 in |
| Length [x] | 25.4 mm |
| Material | Polyvinyl Chloride (PVC) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Adhesive |
| Opening Size [diameter] | 12.7 mm |
| Opening Size [diameter] | 0.5 in |
| Type | C-Type, Clip |
| Type Attributes | Locking, Round |
| Width | 25.4 mm |
| Width [x] | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.72 | |||
| 300 | $ 0.65 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.47 | |||
Description
General part information
KKL Series
Cable Clip, C-Type Gray Adhesive 0.500" (12.70mm)
Documents
Technical documentation and resources
