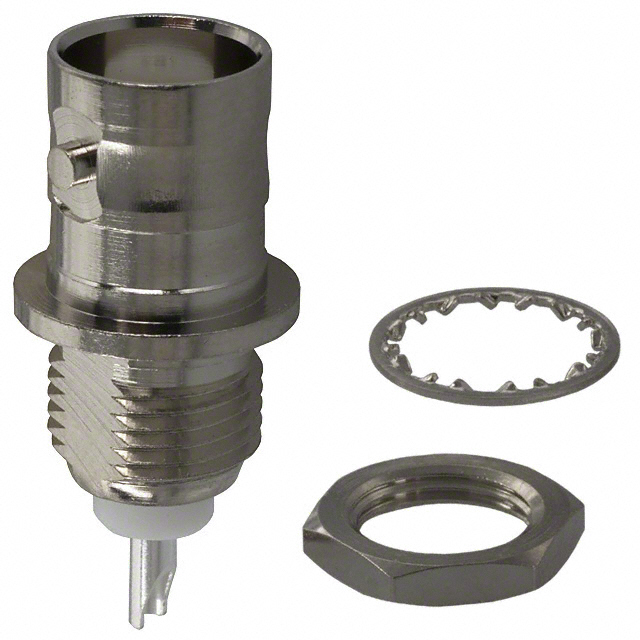

31-221

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-221

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Number of Ports	Mating Cycles	Features	Insertion Loss	Connector Type	Contact Termination	Housing Color	Body Material	Body Finish	Shield Termination	Connector Style	Center Contact Plating	Includes	Mounting Feature	Frequency - Max [Max]	Voltage Rating	Fastening Type
Amphenol RF 31-221	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	1	500	Extended Insulation	0.2 dB	Female Socket Jack	Solder Cup	Silver	Brass	Nickel	Solder	BNC	Silver	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	4 GHz	500 V	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
