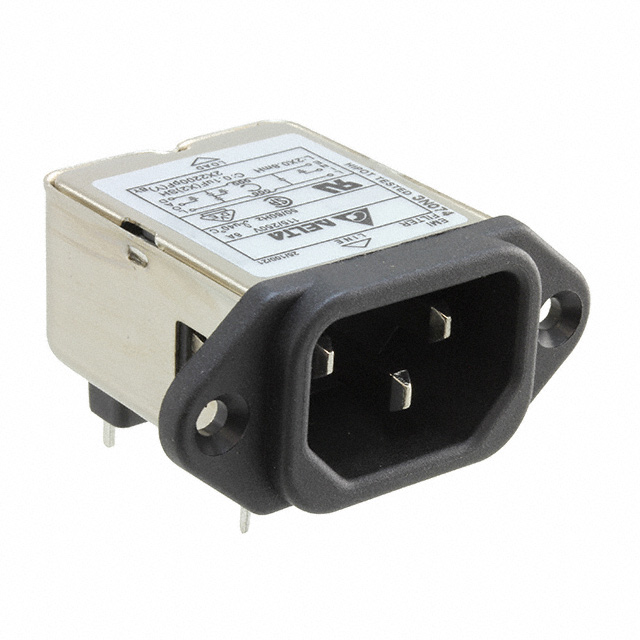

06ME3G

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	06ME3G

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	22.86 mm
Termination	Solder
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Mounting Type	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Termination	Filter Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Approval Agency	Accomodates a Fuse	Current Rating - Filter	Connector Type
Delta Electronics 06ME3G	Panel Mount, Flange, Through Hole, Right Angle	6 A	22.86 mm	30.5 mm	IEC 320-C14	Solder	Filtered (EMI, RFI) - Commercial	115 VAC	250 VAC	CSA, UL, VDE		6 A	Male Blades, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
