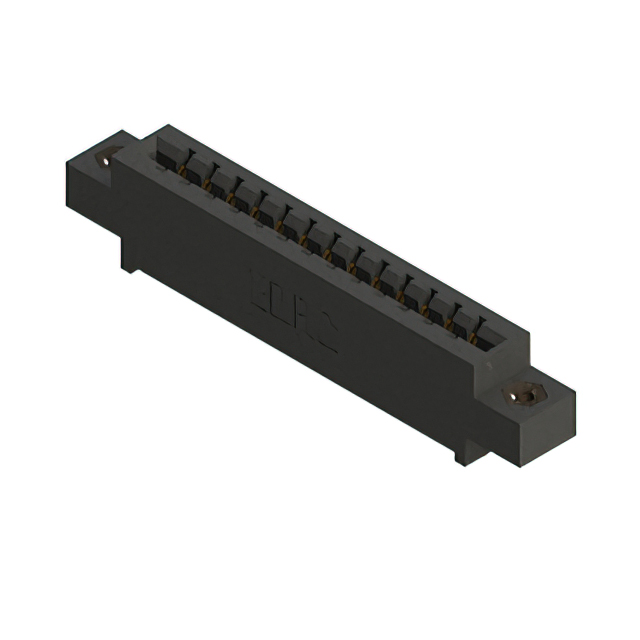

CONN EDGE SGL FMALE 13POS 0.156

Connectors, Interconnects

887-013-500-608

Active

EDAC Inc.

CONN EDGE SGL FMALE 13POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-013-500-608

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole
Number of Positions	13
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1 rows

887-013 Series

...

Part	Card Type	Contact Material	Contact Finish Thickness	Number of Positions	Gender	Pitch	Flange Feature	Contact Type	Contact Finish	Read Out	Color	Termination	Card Thickness (Min)	Card Thickness (Max)	Number of Rows	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 887-013-520-108	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Gold	Single	Black	Solder	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 887-013-500-107	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Gold	Single	Black	Solder Eyelet(s)	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 887-013-500-608	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	4-40 Threaded Insert Top Mount Opening	Cantilever	Gold	Single	Black	Solder Eyelet(s)	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 887-013-558-604	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Top Mount Opening Unthreaded	Cantilever	Gold	Single	Black	Solder	0.054 in	0.07 in	1	Right Angle Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows	0.156 in
EDAC Inc. 887-013-540-104	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	Single	Black	Wire Wrap	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows	0.156 in
EDAC Inc. 887-013-540-102	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	Single	Black	Wire Wrap	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows	0.128 in
EDAC Inc. 887-013-520-107	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Gold	Single	Black	Solder	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 887-013-523-104	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Flush Mount Top Opening Unthreaded	Cantilever	Gold	Single	Black	Solder	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows	0.156 in
EDAC Inc. 887-013-540-607	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	M3 Threaded Insert Top Mount Opening	Cantilever	Gold	Single	Black	Wire Wrap	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 887-013-520-103	Non Specified Single Edge	Copper Alloy	10 Ąin	13	Female	0.156 in	Floating Bobbin Flush Mount	Cantilever	Gold	Single	Black	Solder	0.054 in	0.07 in	1	Through Hole	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows	0.116 in
