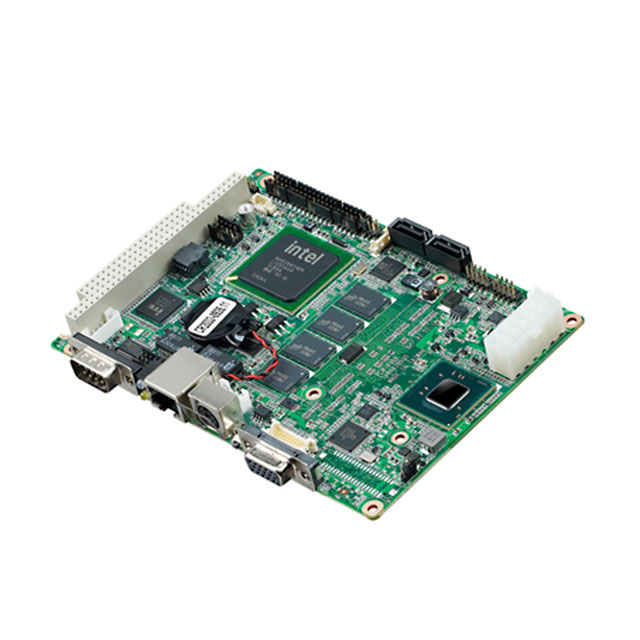

PCM-9389N-1GS6A1E

Obsolete

Advantech Corp

SBC 1.66GHZ 1 CORE 2GB/1GB RAM

Search across all available documentation for this part.

Obsolete

Advantech Corp

SBC 1.66GHZ 1 CORE 2GB/1GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	Video Outputs	Cooling Type	Storage Interface	Core Processor	Power (Watts)	Form Factor	Speed	Ethernet	RS-232 (422, 485)	Expansion Site/Bus	Operating Temperature [Max]	Operating Temperature [Min]	Digital I/O Lines	USB	RAM Capacity/Installed	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Cores
Advantech Corp PCM-9389N-S6A1E	LVDS TTL VGA	Heat Sink	CompactFlash SATA2	Intel Atom N455	8.15 W	3.5 in	1.66 GHz	10 Mbps 100 Mbps 1000 Mbps	4	LPC PC/104	60 °C	0 °C	8	USB 2.0 (4)	1 GB 2 GB	101.6 mm	4 "	5.7 "	144.78 mm	1
Advantech Corp PCM-9389NZ-1GOBA1E	LVDS TTL VGA	Heat Sink	CompactFlash SATA2	Intel Atom N455	8.15 W	3.5 in	1.66 GHz	10 Mbps 100 Mbps 1000 Mbps	4	LPC PC/104	80 C	-20 C	8	USB 2.0 (4)	1 GB 2 GB	101.6 mm	4 "	5.7 "	144.78 mm	1
Advantech Corp PCM-9389N-1GS6A1E	LVDS TTL VGA	Heat Sink	CompactFlash SATA2	Intel Atom N455	8.15 W	3.5 in	1.66 GHz	10 Mbps 100 Mbps 1000 Mbps	4	LPC PC/104	60 °C	0 °C	8	USB 2.0 (4)	1 GB 2 GB	101.6 mm	4 "	5.7 "	144.78 mm	1
Advantech Corp PCM-9389NZ21GOBA1E	LVDS TTL VGA	Heat Sink	CompactFlash SATA2	Intel Atom N455	8.15 W	3.5 in	1.66 GHz	10 Mbps 100 Mbps 1000 Mbps	4	LPC PC/104	85 °C	-40 °C	8	USB 2.0 (4)	1 GB 2 GB	101.6 mm	4 "	5.7 "	144.78 mm	1
Advantech Corp PCM-9389NZ22GDMA1E	LVDS TTL VGA	Heat Sink	CompactFlash SATA2	Intel Atom N455	8.15 W	3.5 in	1.66 GHz	10 Mbps 100 Mbps 1000 Mbps	4	LPC PC/104	85 °C	-40 °C	8	USB 2.0 (4)	0 GB 2 GB	101.6 mm	4 "	5.7 "	144.78 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.66GHz 1 Core 2GB/1GB RAM Intel Atom N455
