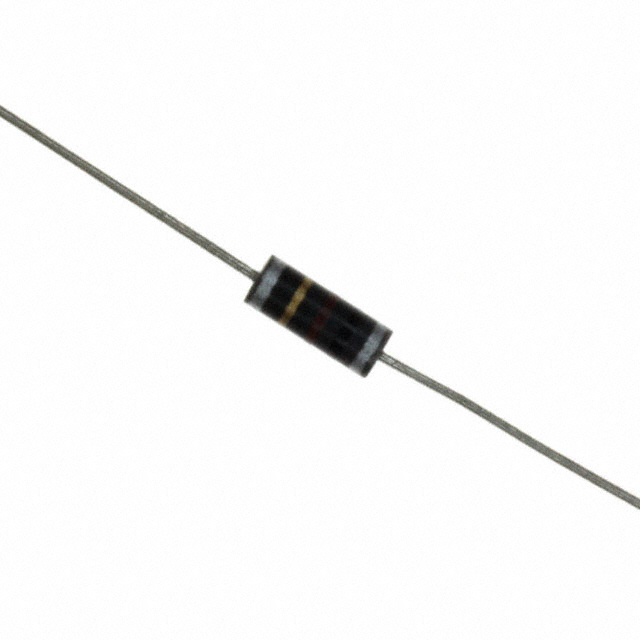

Specification	9230-88

Current Rating	0.042 A
DC Resistance (DCR) (Max)	60 Ohm
Frequency - Self Resonant	4.2 MHz
Inductance	680 µH
Inductance Frequency - Test	790 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Q	30
Shielding	Unshielded
Size / Dimension Diameter	0.095 in
Size / Dimension Length	0.25 in
Tolerance	10 %
Type	Molded

9230 Series

Part	Current Rating	Shielding	Frequency - Self Resonant	Inductance	Tolerance	Material - Core	Q	Size / Dimension Diameter	Size / Dimension Length	Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	DC Resistance (DCR) (Max)	Package / Case	Inductance Frequency - Test
Bourns Inc. 9230-88	0.042 A	Unshielded	4.2 MHz	680 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	60 Ohm	Axial	790 kHz
Bourns Inc. 9230-86	48 mA	Unshielded	5 MHz	560 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	46 Ohm	Axial	790 kHz
Bourns Inc. 9230-28	0.55 A	Unshielded	115 MHz	2.2 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	400 mOhm	Axial	7.9 MHz
Bourns Inc. 9230-50	195 mA	Unshielded	32 MHz	18 µH	10 %	Ferrite	50	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	3.1 Ohm	Axial	2.5 MHz
Bourns Inc. 9230-76	73 mA	Unshielded	9 MHz	220 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	21 Ohm	Axial	790 kHz
Bourns Inc. 9230-82-RC	0.055 A	Unshielded	6.5 MHz	390 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	35 Ohm	Axial	790 kHz
Bourns Inc. 9230-02-RC	1.01 A	Unshielded	550 MHz	180 nH	10 %	Phenolic	35	0.095 in	0.25 in	Molded	Through Hole	105 °C	-55 °C	120 mOhm	Axial	25 MHz
Bourns Inc. 9230-80	62 mA	Unshielded	7 MHz	330 µH	10 %	Ferrite	30	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	28 Ohm	Axial	790 kHz
Bourns Inc. 9230-40-RC	0.245 A	Unshielded	60 MHz	6.8 µH	10 %	Ferrite	50	0.095 in	0.25 in	Molded	Through Hole	125 °C	-55 °C	2 Ohm	Axial	7.9 MHz
Bourns Inc. 9230-12	590 mA	Unshielded	340 MHz	470 nH	10 %	Phenolic	30	0.095 in	0.25 in	Molded	Through Hole	105 °C	-55 °C	350 mOhm	Axial	25 MHz
