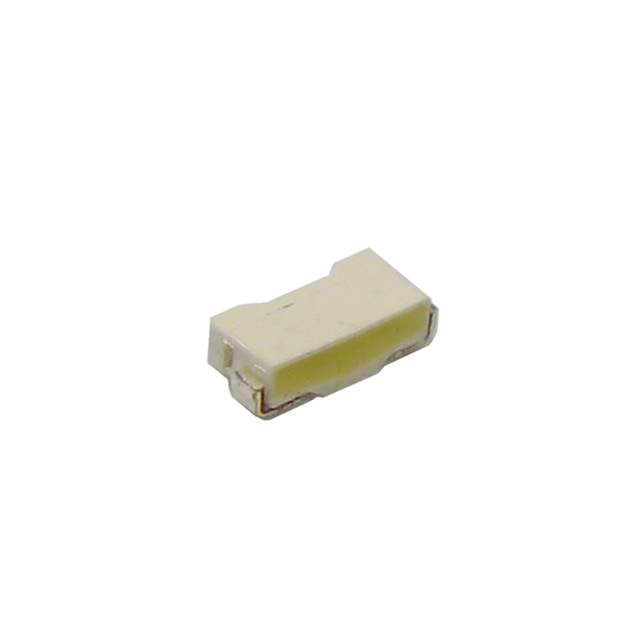

XZFWS81FS
ActiveSunLED
LED WHITE CLEAR CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFWS81FS
ActiveSunLED
LED WHITE CLEAR CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFWS81FS |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.3 mm |
| Lens Size [y] | 0.57 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1395 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| Digi-Reel® | 1 | $ 0.73 | ||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 4000 | $ 0.29 | |||
| 6000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 14000 | $ 0.26 | |||
| 20000 | $ 0.26 | |||
| 50000 | $ 0.19 | |||
Description
General part information
XZFWS81 Series
White LED Indication - Discrete 3.3V 2-SMD, J-Lead
