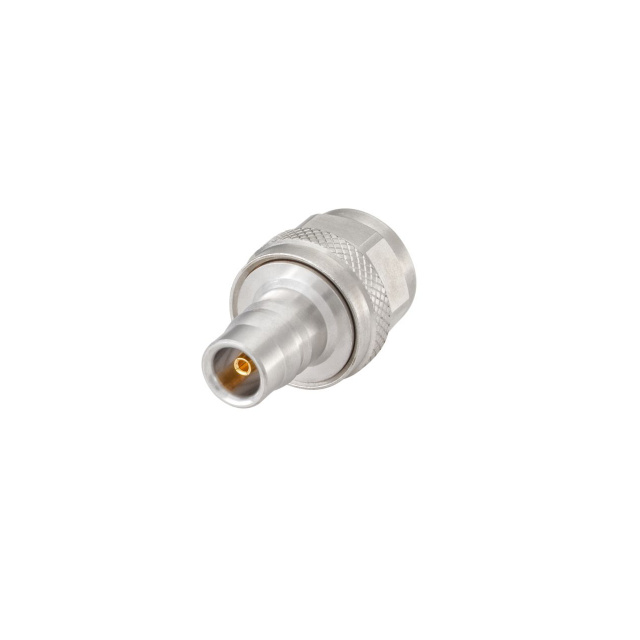

153QK153-S00N5

Active

Rosenberger

QN ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

QN ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	153QK153-S00N5

Adapter Series [Max]	N
Adapter Series [Min]	QN
Adapter Type	Plug to Jack
Body Finish	Silver, White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, QN Jack
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Insertion Loss	0.17 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Body Finish	Convert From (Adapter End)	Conversion Type	Mating Cycles	Convert To (Adapter End)	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Adapter Type	Insertion Loss	Impedance	Body Material	Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Adapter Series [Min]	Adapter Series [Max]
Rosenberger 153QK153-S00N5	Silver White Bronze	Female Socket QN Jack	Between Series	500	Male Pin N Plug	Bronze	11 GHz	Gold	Plug to Jack	0.17 dB	50 Ohms	Brass	Free Hanging (In-Line)	Straight	125 °C	-40 °C	Polytetrafluoroethylene (PTFE)	QN	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector QN Jack, Female Socket To N Plug, Male Pin 50 Ohms
