060-0241-04

Active

Honeywell Sensing and Productivity Solutions T&M

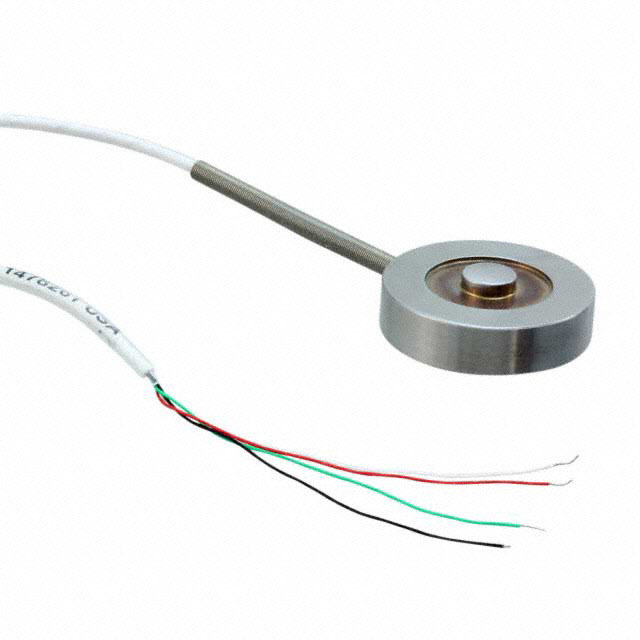

SENSOR FORCE LOAD CELL 50000LBS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

SENSOR FORCE LOAD CELL 50000LBS

Technical Specifications

Parameters and characteristics for this part

Specification	060-0241-04

Accuracy	0.5 %
Actuator Style/Size	19.81 mm
Actuator Style/Size	Round
Actuator Type	Pushbutton
Compensated Temperature [Max]	71 °C
Compensated Temperature [Min]	15 °C
Includes	Sensor
Operating Force	50000 lbs
Operating Force	22680 kgf
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-54 °C
Sensor Type	Load Cell
Voltage - Supply	10 V

SENSOR FORCE LOAD CELL 50000LBS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Sensor Type	Actuator Style/Size	Actuator Style/Size	Actuator Type	Voltage - Supply	Compensated Temperature [Max]	Compensated Temperature [Min]	Operating Force	Operating Force	Accuracy
Honeywell Sensing and Productivity Solutions T&M 060-0241-04	121 °C	-54 °C	Sensor	Load Cell	19.81 mm	Round	Pushbutton	10 V	71 °C	15 °C	50000 lbs	22680 kgf	0.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1759.72

General part information

SENSOR FORCE LOAD CELL 50000LBS

Technical documentation and resources
