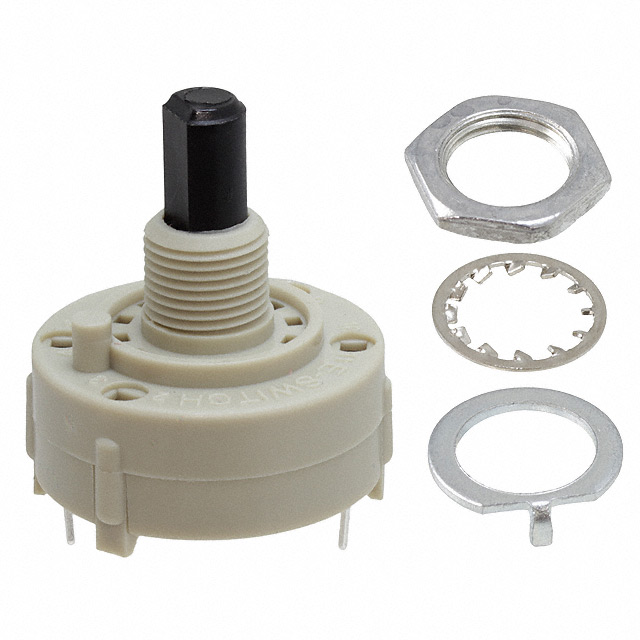

KC18A9.501NPS

Active

E-Switch

SWITCH ROTARY 8POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 8POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC18A9.501NPS

Actuator Length [x]	9.5 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP8T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel	14.2 mm
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	8
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Contact Material	Depth Behind Panel	Actuator Type [diameter]	Actuator Type	Contact Timing	Termination Style	Index Stops	Actuator Length [x]	Circuit per Deck	Number of Positions	Panel Cutout Dimensions [diameter]	Contact Finish	Number of Decks [custom]	Number of Poles per Deck	Voltage Rating - AC	Angle of Throw	Mounting Type
E-Switch KC18A9.501NPS	350 mA	Copper Alloy	14.2 mm	6.35 mm	Flatted	Non-Shorting	PC Pin	Fixed	9.5 mm	SP8T	8	9.8 mm	Silver	1	1	125 V	30 °	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 8 Position SP8T 350mA (AC) 125 VAC Panel Mount, Through Hole
