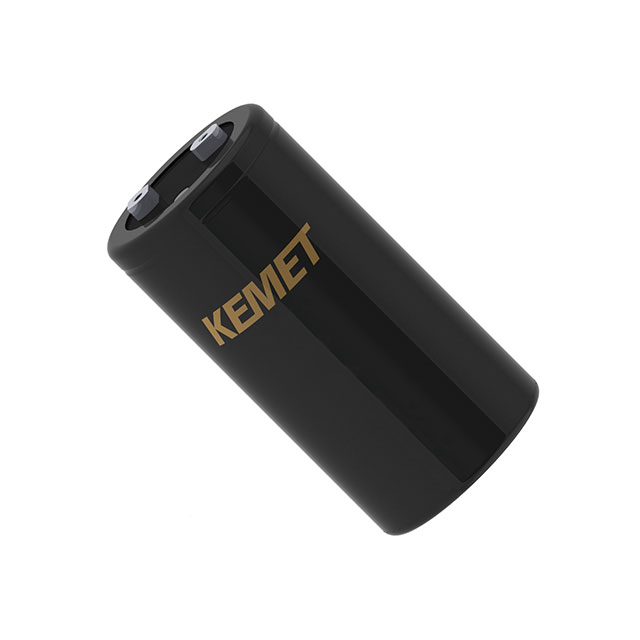

ALS81H512NJ450

Active

KEMET

CAP ALUM 5100UF 20% 450V SCREW

ALS81H512NJ450

Active

KEMET

CAP ALUM 5100UF 20% 450V SCREW

Description Specifications Series Pricing CAD Documents

Description

General part information

ALS81H Series

5100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 37mOhm @ 100Hz 9000 Hrs @ 105°C

Technical Specifications

Parameters and characteristics for this part

Specification	ALS81H512NJ450

Applications	General Purpose
Capacitance	5100 µF
ESR (Equivalent Series Resistance)	37 mOhm
Height - Seated (Max)	4.606 in
Impedance	25 mOhms
Lead Spacing	1.252 in
Lifetime	9000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	20.2 A, 13.5 A
Size / Dimension Diameter	3.031 in
Tolerance	20 %
Voltage - Rated	450 V

ALS81H Series

...

Part	Capacitance	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Impedance	ESR (Equivalent Series Resistance)	Size / Dimension Diameter	Lead Spacing	Applications	Tolerance	Ripple Current	Height - Seated (Max)	Mounting Type	Lifetime	Polarization
KEMET ALS81H204QP063	200000 µF	63 V	-40 °C	105 °C	Can - Screw Terminals Radial	8 mOhms	6 mOhm	3.543 in	1.252 in	General Purpose	20 %	31.8 A 33.5 A 33.5 A	5.827 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H243NW200	24000 µF	200 VDC	-40 °C	105 °C	Can - Screw Terminals Radial	14 mOhm	18 mOhm	3.031 in	1.252 in	General Purpose	20 %	19.9 A 24.4 A	6.732 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H123NT400	12000 µF	400 V	-40 °C	105 °C	Can - Screw Terminals Radial	12 mOhm	17 mOhm	3.031 in	1.252 in	General Purpose	20 %	19 A 26.1 A	8.74 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H304LM025	300000 µF	25 VAC	-40 °C	105 °C	Can - Screw Terminals Radial	9 mOhm	9 mOhm	2.5 in	1.122 in	General Purpose	20 %	25 A 26.3 A	5.236 in	Chassis Mount	8000 Hrs	Polar
KEMET ALS81H912NP350	9100 µF	350 V	-40 °C	105 °C	Can - Screw Terminals Radial	16 mOhms	25 mOhm	3.031 in	1.252 in	General Purpose	20 %	16 A 22.6 A	5.827 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H134NP063	130000 µF	63 V	-40 °C	105 °C	Can - Screw Terminals Radial	9 mOhm	8 mOhm	3.031 in	1.252 in	General Purpose	20 %	26 A 27.8 A	5.827 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H202DE200	2000 µF	200 VDC	-40 °C	105 °C	Can - Screw Terminals Radial	89 mOhm	131 mOhm	1.417 in	0.504 in	General Purpose	20 %	4.8 A 9.1 A	3.307 in	Chassis Mount	6000 Hrs	Polar
KEMET ALS81H244QW063	240000 µF	63 V	-40 °C	105 °C	Can - Screw Terminals Radial	7 mOhm	6 mOhm	3.543 in	1.252 in	General Purpose	20 %	33.9 A 35.7 A	6.732 in	Chassis Mount	9000 Hrs	Polar
KEMET ALS81H361DA450	360 µF	450 V	-40 °C	105 °C	Can - Screw Terminals Radial	262 mOhm	427 mOhm	1.417 in	0.504 in	General Purpose	20 %	2.4 A 6.1 A	2.126 in	Chassis Mount	6000 Hrs	Polar
KEMET ALS81H512NJ450	5100 µF	450 V	-40 °C	105 °C	Can - Screw Terminals Radial	25 mOhms	37 mOhm	3.031 in	1.252 in	General Purpose	20 %	13.5 A 20.2 A	4.606 in	Chassis Mount	9000 Hrs	Polar

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ALS81H512NJ450 | Datasheet
