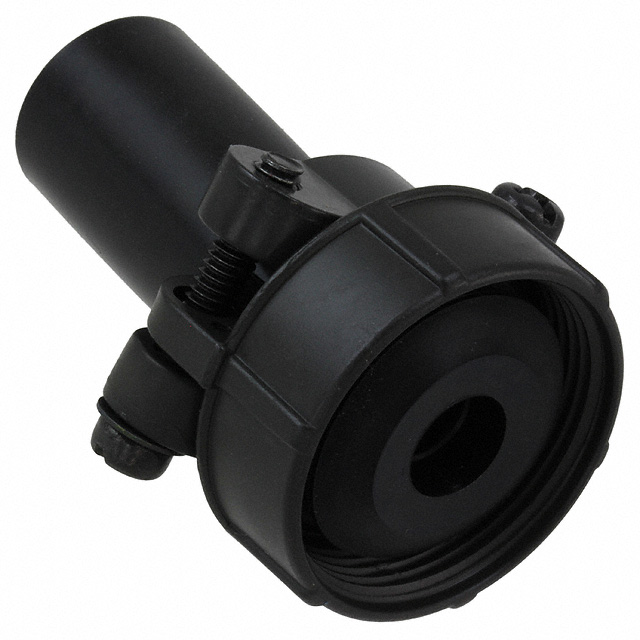

JL04-2022CK(09)-R

Active

JAE Electronics

CONN CAB CLMP SZ20 22 1 3/16-18

Search across all available documentation for this part.

Active

JAE Electronics

CONN CAB CLMP SZ20 22 1 3/16-18

Technical Specifications

Parameters and characteristics for this part

Specification	JL04-2022CK(09)-R

Cable Exit	180 °
Cable Opening [diameter]	9.5 mm
Cable Opening [diameter]	0.374 in
Color	Black
Diameter - Outside [diameter]	1.374 in
Diameter - Outside [diameter]	34.9 mm
Features	Washers, Bushing, Clamp Screws
For Use With/Related Products	JL04V Series Connectors
Includes	2 Screws, 3 Washers, 3 pc Cable Clamp, 1 Bushing
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Aluminum Alloy
Plating	Zinc
Shell Size - Insert	20, 22
Thread Size	1 3/16-18 UNEF-2B
Type	Cable Clamp

Part	Features	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Type	Thread Size	Plating	Shell Size - Insert	Color	For Use With/Related Products	Material	Cable Exit	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]
JAE Electronics JL04-2022CK(09)-R	Bushing Clamp Screws Washers	1 Bushing 2 Screws 3 pc Cable Clamp 3 Washers	1.374 in	34.9 mm	9.5 mm	0.374 in	Cable Clamp	1 3/16-18 UNEF-2B	Zinc	20 22	Black	JL04V Series Connectors	Aluminum Alloy	180 °	IP67 - Dust Tight Waterproof
JAE Electronics JL04-2022CK(12)-R	Bushing Clamp Screws Washers	1 Bushing 2 Screws 3 pc Cable Clamp 3 Washers	1.374 in	34.9 mm			Cable Clamp	1 3/16-18 UNEF-2B	Zinc	20 22	Black	JL04V Series Connectors	Aluminum Alloy	180 °	IP67 - Dust Tight Waterproof	0.512 in	13 mm
JAE Electronics JL04-2022CK(14)-R	Bushing Clamp Screws Washers	1 Bushing 2 Screws 3 pc Cable Clamp 3 Washers	1.374 in	34.9 mm			Cable Clamp	1 3/16-18 UNEF-2B	Zinc	20 22	Black	JL04V Series Connectors	Aluminum Alloy	180 °	IP67 - Dust Tight Waterproof	0.63 in	16 mm
JAE Electronics JL04-2022CK(12)-CR-R	Bushing Clamp Screws Washers	1 Bushing 2 Screws 3 pc Cable Clamp 3 Washers	1.374 in	34.9 mm			Cable Clamp	1 3/16-18 UNEF-2B	Zinc	20 22	Black	JL04V Series Connectors	Aluminum Alloy	180 °	IP67 - Dust Tight Waterproof	0.512 in	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 13.45

General part information

Black Connector Cable Clamp 1 3/16-18 UNEF-2B 20, 22
