Specification	MYMGC0R88RFLF2RVD

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max)	8 A
Efficiency	81 %
Features	Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	60-LGA Module
Power (Watts)	6.8 W
Size / Dimension Height	0.09 in
Size / Dimension Length	0.59 in
Size / Dimension Width	0.47 in
Type	Non-Isolated PoL Module
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	3.3 V
Voltage - Output 1	0.85 V

MGC Series

Part	Total Output Count	Output Type	Non-Isolated Output Count	Frequency - Switching	Regulator Topology	Power - Output	Contents	Main Purpose	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Voltage - Output	Current - Output	Utilized IC / Part	Voltage - Output 3	Voltage - Input (Min)	Control Features	Applications	Mounting Type	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Output 4	Features	Voltage - Output 2	Power (Watts)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Type	Voltage - Input (Max)	Current - Output (Max) Options	Current - Output (Max)	Isolated Output Count
Murata Electronics MYMGC3R32EFPF2RV-EVM	4 count	Non-Isolated	4	2 MHz	Buck	15.15 W	Board	DC/DC Step Down	5.5 V	4.3 V	1.2 V 2.5 V	2.5 A	MYMGC3R32EFPF2RV
Murata Electronics MYMGC3R32EFPF2RVD														3.3 V	4.3 V	Active High Enable	ITE (Commercial)	Surface Mount	1.2 V	4	91 %	2.5 V	Remote On/Off	1.8 V	15 W	0.59 in	0.09 in	0.47 in	85 °C	-40 °C	61-LGA Module	Non-Isolated PoL Module	5.5 V	1.5A 1A 2.5A 2A
Murata Electronics MYMGC1R83BFPF2RVD														1.2 V	3.3 V	Active High Enable	ITE (Commercial)	Surface Mount	0.85 V	4	81 %	1.8 V	Remote On/Off	0.85 V	6.5 W	0.59 in	0.09 in	0.47 in	85 °C	-40 °C	61-LGA Module	Non-Isolated PoL Module	5.5 V	1.5A 3.2A 500mA
Murata Electronics MYMGC0R88RFLF2RVD															3.3 V	Active High Enable	ITE (Commercial)	Surface Mount	0.85 V	1	81 %		Remote On/Off		6.8 W	0.59 in	0.09 in	0.47 in	85 °C	-40 °C	60-LGA Module	Non-Isolated PoL Module	5.5 V		8 A

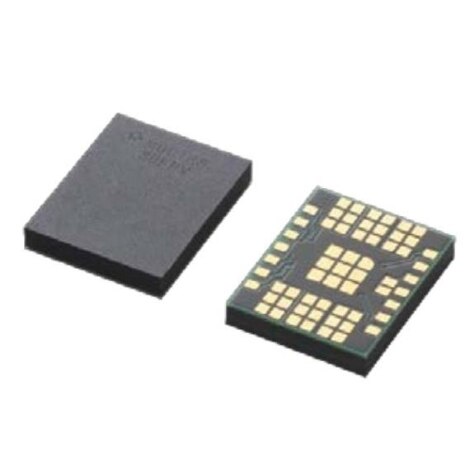

Murata Electronics MYMGC1R83BFPF2RV-EVM	1	Non-Isolated	1 count	2 MHz	Buck	6.44 W	Board	DC/DC Step Down	5.5 V	3.3 V	1.8 V	3.2 A

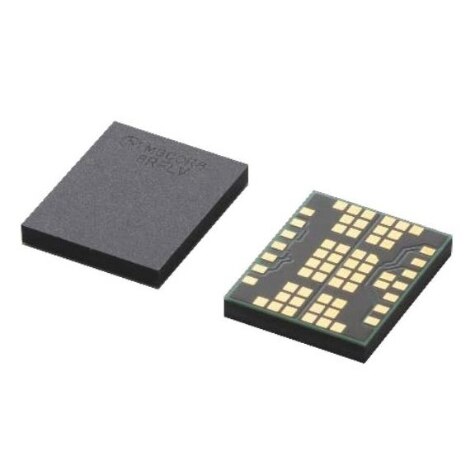

Murata Electronics MYMGC0R88RFLF2RV-EVM	1	Isolated		2 MHz	Buck	6.8 W	Board	DC/DC Step Down	5.5 V	3.3 V	0.85 V	8 A	MYMGC0R88RFLF2RV																							1
