HW-09-10-L-D-477-SM

Active

Samtec Inc.

CONN HDR 18POS 0.1 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-09-10-L-D-477-SM

Active

Samtec Inc.

CONN HDR 18POS 0.1 STACK SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-09-10-L-D-477-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	0.288 in
Length - Post (Mating) [x]	7.315 mm
Length - Stack Height [x]	12.116 mm
Length - Stack Height [x]	0.477 in
Mounting Type	Surface Mount
Number of Positions	18
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-09-10 Series

Part	Length - Overall Pin	Length - Overall Pin	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Color	Contact Finish - Post (Mating)	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin [x]	Length - Tail	Length - Tail
Samtec Inc. HW-09-10-G-S-250-SM-A	19.431 mm	0.765 in	0.25 Ám	10 Áin	1	13.081 mm	0.515 in	Surface Mount	Black	Gold	Solder	0.25 in	6.35 mm	9	2.54 mm	0.1 in
Samtec Inc. HW-09-10-S-D-437-SM-A	19.431 mm	0.765 in	0.76 µm	30 µin	2	8.331 mm	0.328 in	Surface Mount	Black	Gold	Solder	0.437 in	11.1 mm	18	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. HW-09-10-L-D-477-SM	19.431 mm	0.765 in	0.25 Ám	10 Áin	2	7.315 mm	0.288 in	Surface Mount	Black	Gold	Solder	0.477 in	12.116 mm	18	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. HW-09-10-F-D-570-SM	19.431 mm	0.765 in	0.076 Ám	3 Áin	2	4.953 mm	0.195 in	Surface Mount	Black	Gold	Solder	0.57 in	14.478 mm	18	2.54 mm	0.1 in	0.1 in	2.54 mm

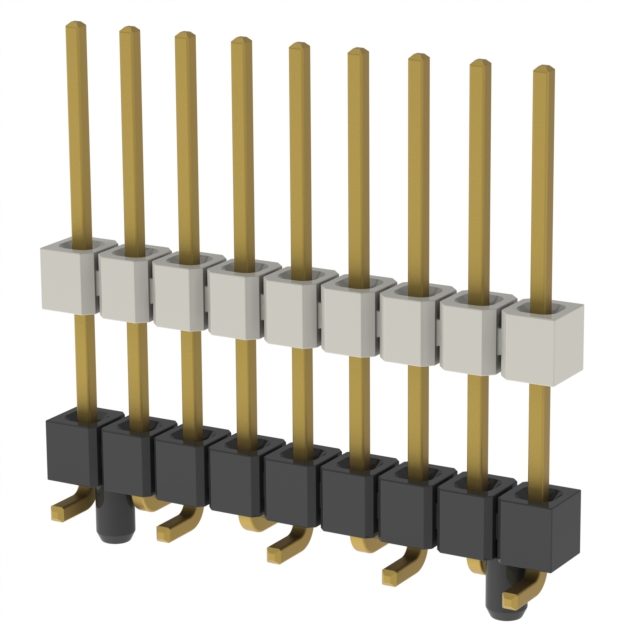

Samtec Inc. HW-09-10-G-S-450-SM	19.431 mm	0.765 in	0.25 Ám	10 Áin	1	8 mm	0.315 in	Surface Mount	Black	Gold	Solder			9	2.54 mm	0.1 in			0.45 in	11.43 mm
Samtec Inc. HW-09-10-G-D-453-160	21.082 mm		0.25 Ám	10 Áin	2	5.512 mm	0.217 in	Through Hole	Black	Gold	Solder	0.453 in	11.506 mm	18	2.54 mm	0.1 in	0.1 in	2.54 mm			0.83 in	0.16 in	4.064 mm
Samtec Inc. HW-09-10-H-S-500-SM-A	19.431 mm	0.765 in	0.76 µm	30 µin	1	6.731 mm	0.265 in	Surface Mount	Black	Gold	Solder	0.5 in	12.7 mm	9	2.54 mm	0.1 in
Samtec Inc. HW-09-10-G-S-600-SM	19.431 mm	0.765 in	0.25 Ám	10 Áin	1	4.191 mm	0.165 in	Surface Mount	Black	Gold	Solder	0.6 in	15.24 mm	9	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 3.70

Description

General part information

HW-09-10 Series

18 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
