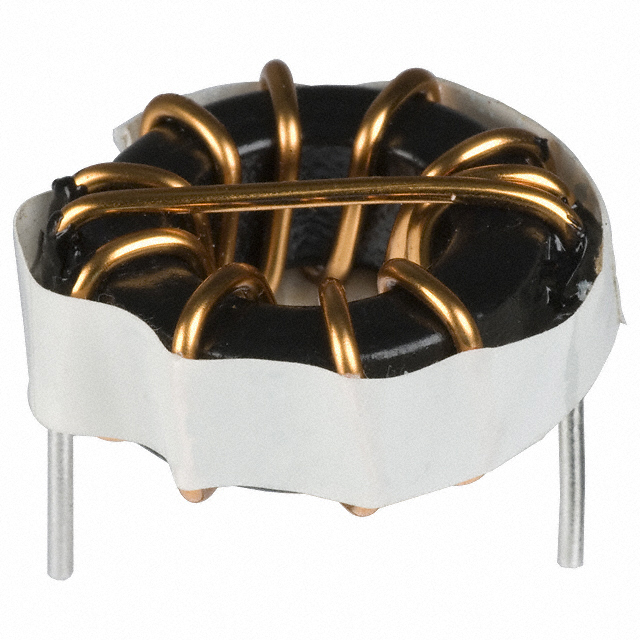

2200LL-391-H-RC

Active

Bourns Inc.

FIXED IND 390UH 3.8A 84 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200LL-391-H-RC

Active

Bourns Inc.

FIXED IND 390UH 3.8A 84 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2200LL-391-H-RC

Current Rating (Amps)	3.8 A
DC Resistance (DCR)	84 mOhm
Height - Seated (Max) [Max] [z]	0.55 "
Height - Seated (Max) [Max] [z]	13.97 mm
Inductance	390 µH
Material - Core	Sendust
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Horizontal (Open)
Shielding	Unshielded
Size / Dimension [diameter]	1.1 in
Size / Dimension [diameter]	27.94 mm
Tolerance	15 %
Type	Toroidal

2200LL Series

Part	Inductance	Tolerance	Shielding	Type	Material - Core	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Current Rating (Amps)	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [y]
Bourns Inc. 2200LL-821-H-RC	820 µH	15 %	Unshielded	Toroidal	Sendust	194 mOhm	0.55 "	13.97 mm	Through Hole	2.5 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C
Bourns Inc. 2200LL-391-H-RC	390 µH	15 %	Unshielded	Toroidal	Sendust		0.55 "	13.97 mm	Through Hole	3.8 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C	84 mOhm
Bourns Inc. 2200LL-390-H-RC	39 µH	15 %	Unshielded	Toroidal	Sendust	11 mOhm	0.55 "	13.97 mm	Through Hole	10.8 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C
Bourns Inc. 2200LL-180-H-RC	18 µH	15 %	Unshielded	Toroidal	Sendust		0.55 "	13.97 mm	Through Hole	13.1 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C
Bourns Inc. 2200LL-470-H-RC	47 µH	15 %	Unshielded	Toroidal	Sendust		0.55 "	13.97 mm	Through Hole	10.3 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C	12 mOhm
Bourns Inc. 2200LL-330-V-RC	33 µH	15 %	Unshielded	Toroidal	Sendust	10 mOhm			Through Hole	11.1 A	Radial Vertical (Open)	1.1 in	27.94 mm	-55 °C	125 °C		13.97 mm	0.55 in
Bourns Inc. 2200LL-221-V-RC	220 µH	15 %	Unshielded	Toroidal	Sendust	63 mOhm			Through Hole	4.4 A	Radial Vertical (Open)	1.1 in	27.94 mm	-55 °C	125 °C		13.97 mm	0.55 in
Bourns Inc. 2200LL-151-V-RC	150 µH	15 %	Unshielded	Toroidal	Sendust				Through Hole	4.9 A	Radial Vertical (Open)	1.1 in	27.94 mm	-55 °C	125 °C		13.97 mm	0.55 in
Bourns Inc. 2200LL-560-H-RC	56 µH	15 %	Unshielded	Toroidal	Sendust		0.55 "	13.97 mm	Through Hole	9.8 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C	13 mOhm
Bourns Inc. 2200LL-271-H-RC	270 µH	15 %	Unshielded	Toroidal	Sendust	70 mOhm	0.55 "	13.97 mm	Through Hole	4.2 A	Radial Horizontal (Open)	1.1 in	27.94 mm	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.53
		10	$ 2.95
		25	$ 2.69
		50	$ 2.31
		108	$ 2.26

Description

General part information

2200LL Series

390 µH Unshielded Toroidal Inductor 3.8 A 84mOhm Max Radial, Horizontal (Open)

Documents

Technical documentation and resources
