112586

Active

McGill Microwave Systems

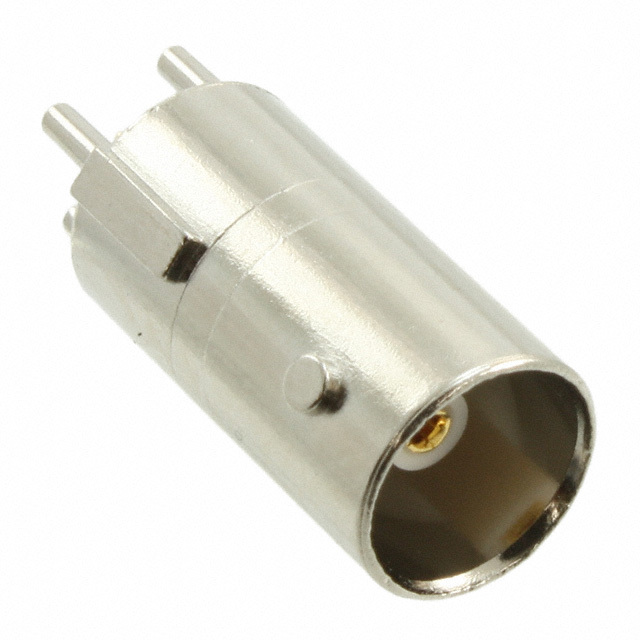

CONN BNC JACK STR 75 OHM PCB

112586

Active

McGill Microwave Systems

CONN BNC JACK STR 75 OHM PCB

Description Specifications Series Pricing CAD Documents

Description

General part information

1125 Series

BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder

Technical Specifications

Parameters and characteristics for this part

Specification	112586

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	75 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

1125 Series

Part	Connector Style	Mounting Type	Frequency - Max	Fastening Type	Shield Termination	Center Contact Material	Impedance	Contact Termination	Cable Group	Cable Group Current Rating	Housing Color	Number of Ports	Connector Type	Dielectric Material	Body Finish	Mating Cycles	Body Material	Center Contact Plating	Voltage Rating	Includes Total Count	Includes	Ingress Protection	Insertion Loss	Cable Group Diameter (Semi Rigid)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature
McGill Microwave Systems 112540	BNC	Free Hanging (In-Line) Right Angle	4 GHz	Bayonet Lock	Crimp	Brass	75 Ohm	Crimp	143 212 54 89248 9290 Belden 1152A RG-6	6 A	Silver	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 112591	BNC	Through Hole	4 GHz	Bayonet Lock	Solder	Phosphor Bronze	50 Ohm	Solder			Silver	1	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V			Waterproof	0.2 dB
McGill Microwave Systems 112521	BNC	Free Hanging (In-Line)	4 GHz	Bayonet Lock	Crimp	Brass	75 Ohm	Crimp	180 180A 180B 1865A 195 Belden 1855 RG-122		Silver	1	Male Pin Plug	Polyoxymethylene (POM) Acetal	Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 112551	BNC	Free Hanging (In-Line)	4 GHz	Bayonet Lock	Solder	Brass	50 Ohm	Solder	RG-402		Gold Silver	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Gold Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector Contact Insulator		0.2 dB	0.141 in
McGill Microwave Systems 112586	BNC	Through Hole	4 GHz	Bayonet Lock	Solder	Beryllium Copper	75 Ohm	Solder			Silver	1	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Zinc Die Cast	Gold	500 V
McGill Microwave Systems 112576	BNC	Free Hanging (In-Line)	4 GHz	Bayonet Lock	Crimp	Brass	75 Ohm	Crimp	11A 1859 391 392 7731 8213 9292 Belden 1620 RG-11		Silver	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V	2 pcs	Connector Contact				-65 °C	165 °C
McGill Microwave Systems 112594	BNC	Free Hanging (In-Line) Right Angle	4 GHz	Bayonet Lock	Crimp	Brass	50 Ohm	Solder	213 214 225 302 393 87 8A 9 9A 9B RG-8		Silver	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector End Cap Ferrule		0.2 dB
McGill Microwave Systems 112513	BNC	Free Hanging (In-Line)	4 GHz	Bayonet Lock	Crimp	Phosphor Bronze	50 Ohm	Crimp	142 223 400 RG-55		Silver	1	Female Socket Jack	Polyoxymethylene (POM) Acetal	Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector Contact Ferrule		0.2 dB
McGill Microwave Systems 112568	BNC	Panel Mount	4 GHz	Bayonet Lock	Crimp	Phosphor Bronze	75 Ohm	Crimp	180 180A 180B 1865A 195 Belden 1855 RG-122		Silver	1	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut						Bulkhead Front Side Nut
McGill Microwave Systems 112588	BNC	Free Hanging (In-Line) Right Angle	4 GHz	Bayonet Lock	Crimp	Brass	75 Ohm	Solder	180 180A 180B 1865A 195 Belden 1855 RG-122		Silver	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Nickel	500 cycles	Brass	Gold	500 V	3 pcs	Connector End Cap Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
