Specification	2343522-8

Connector Pin Configuration (Columns)	2 pins
Connector Pin Configuration (Rows)	2 pins
Connector Style	Receptacle with Cage, Ganged
Connector Type	zSFP+
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	EMI Shielded, Light Pipe, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions (Columns)	20
Number of Positions (Rows)	4
Number of Positions (Total)	80
Termination	Press-Fit

2343522 Series

Part	Contact Finish Thickness	Contact Finish	Number of Positions (Total)	Number of Positions (Columns)	Number of Positions (Rows)	Connector Type	Connector Pin Configuration (Columns)	Connector Style	Connector Pin Configuration (Rows)	Features	Termination	Mounting Type

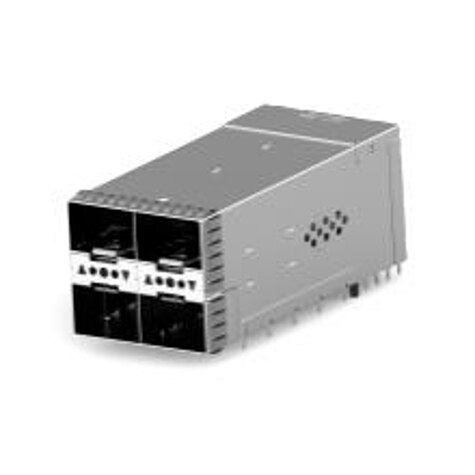

TE Connectivity AMP Connectors 3-2343522-3	30 µin	Gold	80	20	4	zSFP+	2 pins	Ganged Receptacle with Cage	2 pins	Board Guide EMI Shielded Light Pipe	Press-Fit	Right Angle Through Hole
TE Connectivity AMP Connectors 2343522-8	30 µin	Gold	80	20	4	zSFP+	2 pins	Ganged Receptacle with Cage	2 pins	Board Guide EMI Shielded Light Pipe	Press-Fit	Right Angle Through Hole
