Specification	282959-3

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	15 A
Features	Retention Latches (Non-Wire Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.61 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	3
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.295 in
Plug Wire Entry Angle	180 °
Positions Per Level	3
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2 mm²
Wire Gauge or Range - mm² (Minimum)	0.05 mm²
Wire Strip Length (Max)	7.5 mm
Wire Strip Length (Min)	6 mm

282959 Series

Part	Positions Per Level	Number of Levels	Plug Wire Entry Angle	Voltage - UL	Current - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Color	Contact Mating Finish	Termination Style	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Features	Pitch	Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Wire Strip Length (Min)	Wire Strip Length (Max)	Contact Material	Torque - Screw	Material Flammability Rating	Housing Material	Insulation Height	Screw Size

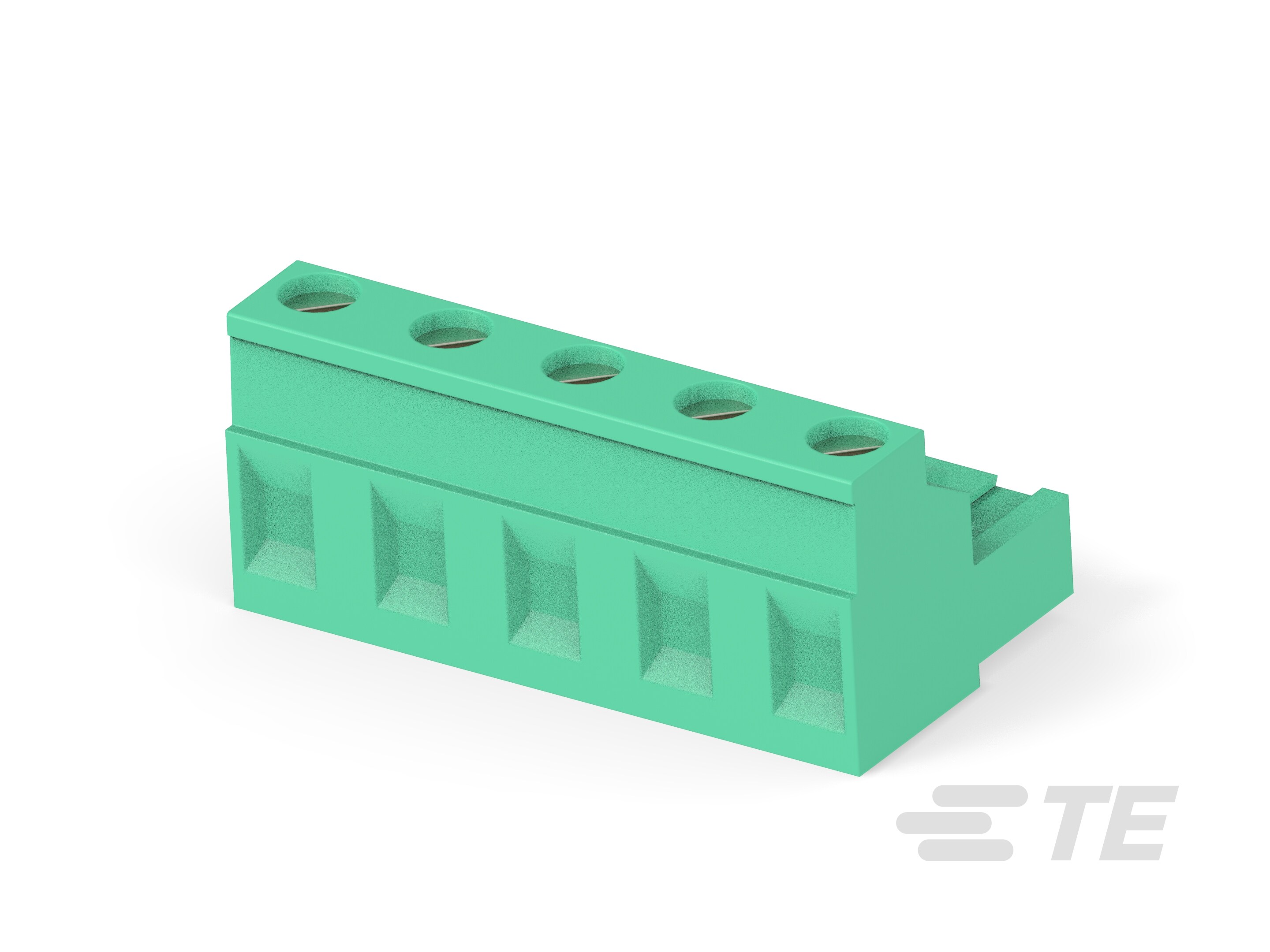

TE Connectivity AMP Connectors 282959-5	5	1	180 °	300 V	15 A	0.05 mm²	2 mm²	Green	Tin	Screw - Rising Cage Clamp	30 AWG	12 AWG	5	Retention Latches (Non-Wire Side)	0.295 in	Female Sockets Plug	Free Hanging (In-Line)	-40 °C	110 °C	6 mm	7.5 mm	Phosphor Bronze	0.79 Nm	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.61 in	M3
TE Connectivity AMP Connectors 282959-3	3	1	180 °	300 V	15 A	0.05 mm²	2 mm²	Green	Tin	Screw - Rising Cage Clamp	30 AWG	12 AWG	3	Retention Latches (Non-Wire Side)	0.295 in	Female Sockets Plug	Free Hanging (In-Line)	-40 °C	110 °C	6 mm	7.5 mm	Phosphor Bronze	0.79 Nm	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.61 in	M3
TE Connectivity AMP Connectors 282959-2	2	1	180 °	300 V	15 A	0.05 mm²	2 mm²	Green	Tin	Screw - Rising Cage Clamp	30 AWG	12 AWG	2	Retention Latches (Non-Wire Side)	0.295 in	Female Sockets Plug	Free Hanging (In-Line)	-40 °C	110 °C	6 mm	7.5 mm	Phosphor Bronze	0.79 Nm	UL94 V-0	Nylon 6/6 PA66 Polyamide	0.61 in	M3
