387-072-556-268
ActiveEDAC Inc.

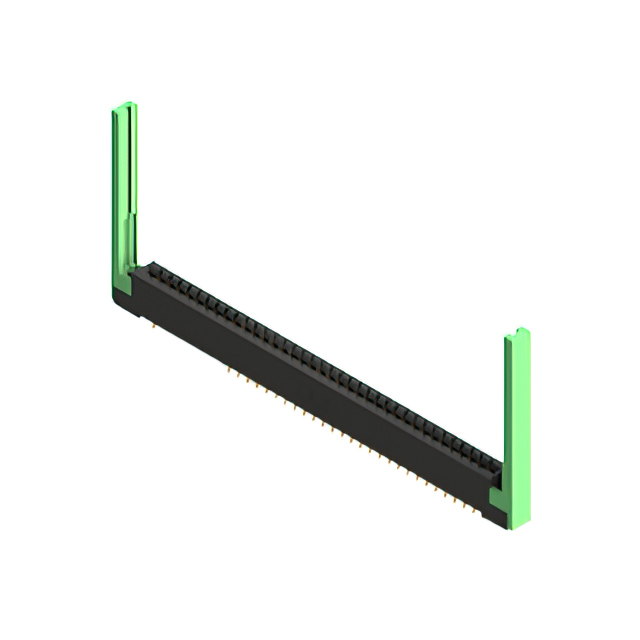

CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-072-556-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-072-556-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-072 Series
...
| Part | Number of Rows | Mounting Type | Termination | Gender | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature | Flange Feature | Number of Positions | Contact Type | Card Type | Color | Read Out | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2 | Through Hole | Solder | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 2 | Through Hole | Solder | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 2 | Through Hole | Solder | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | 3.96 mm | 0.156 in | ||
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | Board Edge Straddle Mount | Solder | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 2 | Through Hole | Wire Wrap | Female | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | 36 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Floating Bobbin Top Mount Opening | 72 | Cantilever | Non Specified - Dual Edge | Black | Dual | 2 | 0.156 in | 3.96 mm | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 18.81 | |
Description
General part information
387-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
