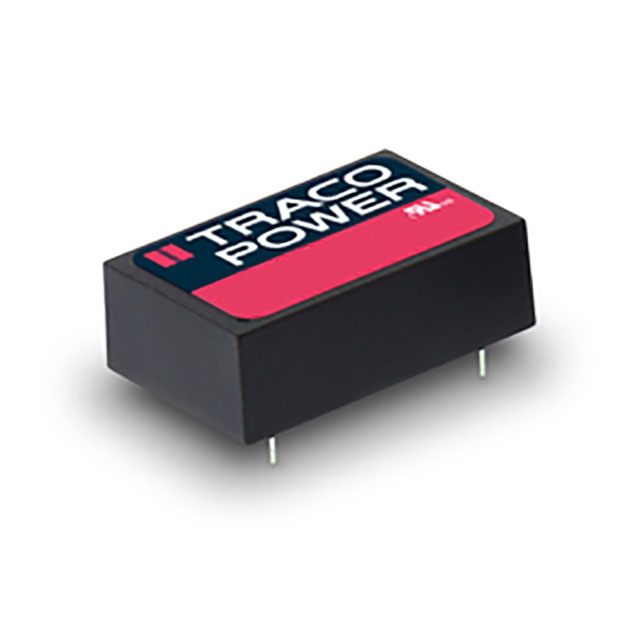

DC DC CONVERTER +/-12V 10W

THM 10-2422

Active

Traco Power

DC DC CONVERTER +/-12V 10W

Description Specifications Series Pricing CAD Documents

Description

General part information

THM 10 Series

Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input

Technical Specifications

Parameters and characteristics for this part

Specification	THM 10-2422

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	416 mA
Efficiency	89 %
Features	SCP, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Package Leads	6 Leads
Package Name	24-DIP Module
Power (Watts)	10 W
Size / Dimension Height	0.4 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	5000 Vrms
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

THM 10 Series

Part	Package Leads	Package Name	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Number of Outputs	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Type	Power (Watts)	Voltage - Isolation	Current - Output (Max)	Features	Applications	Voltage - Input (Min)	Voltage - Output 1	Efficiency	Approval Agency	Voltage - Output 2
Traco Power THM 10-0515WI	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 Vrms	416 mA	OCP OVP SCP	Medical	4.5 V	24 V	85.5 %
Traco Power THM 10-0510	5 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	8.3 W	5000 Vrms	2.5 A	OCP OVP SCP	Medical	4.5 V	3.3 V	80 %	CB cURus
Traco Power THM 10-2422	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	2	Through Hole	90 °C	-40 °C	36 V	Isolated Module	10 W	5000 Vrms	416 mA	OCP OVP SCP	Medical	18 V	12 V	89 %	CB cURus	-12 V
Traco Power THM 10-4822WI	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	2	Through Hole	90 °C	-40 °C	75 V	Isolated Module	10 W	5000 Vrms	416 mA	OCP OVP SCP	Medical	18 V	12 V	88 %		-12 V
Traco Power THM 10-4821WI	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	2	Through Hole	90 °C	-40 °C	75 V	Isolated Module	10 W	5000 Vrms	1 A	OCP OVP SCP	Medical	18 V	5 V	85 %		-5 V
Traco Power THM 10-1221	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	2	Through Hole	90 °C	-40 °C	18 V	Isolated Module	10 W	5000 Vrms	1 A	OCP OVP SCP	Medical	9 V	5 V	84 %	CB cURus	-5 V
Traco Power THM 10-0511WI	6 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 Vrms	2 A	OCP OVP SCP	Medical	4.5 V	5 V	84 %
Traco Power THM 10-0511	5 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	9 V	Isolated Module	10 W	5000 Vrms	2 A	OCP OVP SCP	Medical	4.5 V	5 V	84 %	CB cURus
Traco Power THM 10-1212	5 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	18 V	Isolated Module	10 W	5000 Vrms	830 mA	OCP OVP SCP	Medical	9 V	12 V	88 %	CB cURus
Traco Power THM 10-2410	5 Leads	24-DIP Module	0.4 in	1.25 in	0.8 in	1	Through Hole	90 °C	-40 °C	36 V	Isolated Module	8.3 W	5000 Vrms	2.5 A	OCP OVP SCP	Medical	18 V	3.3 V	83 %	CB cURus
