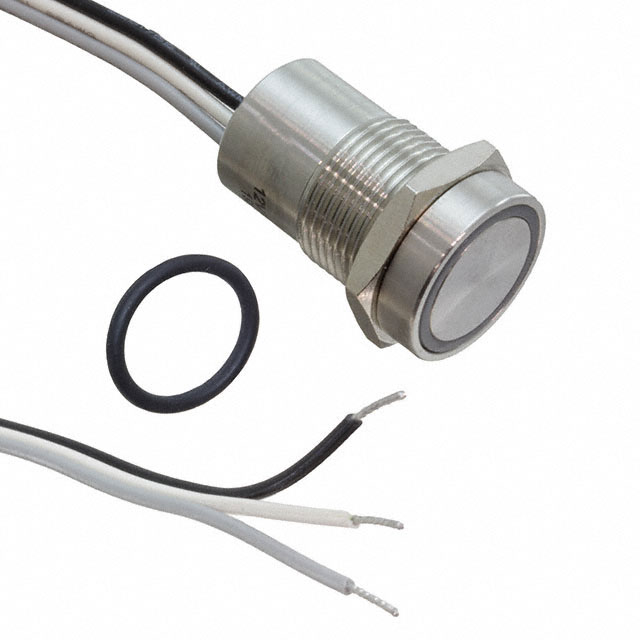

MC16MOSGR

Active

BULGIN LIMITED

SW CAPACITIVE SPST-NO 10MA 12V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SW CAPACITIVE SPST-NO 10MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	MC16MOSGR

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	12 V

Part	Illumination Type, Color	Actuator Type	Mechanical Life	Mounting Type	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Circuit	Ingress Protection	Type	Voltage Rating - DC	Electrical Life	Termination Style	Switch Function	Current Rating (Amps)	Illumination Voltage (Nominal)
BULGIN LIMITED MC16MOSGR	Green/Red LED	Button Flush Round	50000000 Cycles	Panel Mount Front	No Marking	Silver	55 °C	-25 °C	16.2 mm	SPST-NO	IP68 IP69K	Capacitive Illuminated	12 V	50000000 Cycles	Wire Leads	Off-Mom	500 mA
BULGIN LIMITED MC16MOSAM	Amber LED	Button Flush Round	50000000 Cycles	Panel Mount Front		Silver	55 °C	-25 °C	16.2 mm	SPST-NO	IP68 IP69K	Capacitive Illuminated	24 V	50000000 Cycles	Wire Leads	Off-Mom	500 mA	12 VDC
BULGIN LIMITED MC16MOSGN	Green LED	Button Flush Round	50000000 Cycles	Panel Mount Front		Silver	55 °C	-25 °C	16.2 mm	SPST-NO	IP68 IP69K	Capacitive Illuminated	24 V	50000000 Cycles	Wire Leads	Off-Mom	500 mA	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Capacitive, Illuminated Panel Mount, Front
