C0RRS-1636G
ActiveCW Industries
DIP CABLE - CDR16S/AE16G/CDR16S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | C0RRS-1636G | C0RRS-1 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed | DIP to DIP, Reversed |
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 2.54 µm | 2.54 µm |
| Contact Finish Thickness | 100 µin | 100 µin |
| Features | Strain Relief | Strain Relief |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 3 ft | 1.5 - 3 ft |
| Length [x] | 914.4 mm | 457.2 - 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 14 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Socket (0.3"), Board In | Socket (0.3"), Board In |
C0RRS-1 Series
DIP CABLE - CDR16S/AE16M/CDR16S
| Part | Number of Positions | Pitch - Connector | Pitch - Connector | Color | Cable Termination | Pitch - Cable | Pitch - Cable | Shielding | Features | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length [x] | Length [x] | Usage | Connector Type | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries C0RRS-1636M | 16 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | 3 ft | 914.4 mm | Board In, Socket (0.3") | DIP to DIP, Reversed | ||||
CW Industries C0RRS-1606M | 16 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | Board In, Socket (0.3") | DIP to DIP, Reversed | 152.4 mm | 6 " | 0.5 ' | |||
CW Industries C0RRS-1606G | 16 | 0.1 in | 2.54 mm | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | Board In, Socket (0.3") | DIP to DIP, Reversed | 152.4 mm | 6 " | 0.5 ' | ||||
CW Industries C0RRS-1618M | 16 | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | 1.5 ft | 457.2 mm | Board In, Socket (0.3") | DIP to DIP, Reversed | ||||
CW Industries C0RRS-1636G | 16 | 0.1 in | 2.54 mm | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | 3 ft | 914.4 mm | Board In, Socket (0.3") | DIP to DIP, Reversed | |||||
CW Industries C0RRS-1418M | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | 1.5 ft | 457.2 mm | Board In, Socket (0.3") | DIP to DIP, Reversed | 14 | ||||
CW Industries C0RRS-1406M | 0.1 in | 2.54 mm | Multiple, Ribbon | IDC | 0.05 " | 1.27 mm | Unshielded | Strain Relief | 2 | 2.54 µm | 100 µin | Tin | Board In, Socket (0.3") | DIP to DIP, Reversed | 152.4 mm | 6 " | 0.5 ' | 14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.87 | |
| 10 | $ 7.57 | |||
| 25 | $ 6.84 | |||
| 50 | $ 6.34 | |||
| 100 | $ 5.89 | |||
| 250 | $ 5.36 | |||
| 500 | $ 5.00 | |||
| 1000 | $ 4.68 | |||
Description
General part information
C0RRS-1 Series

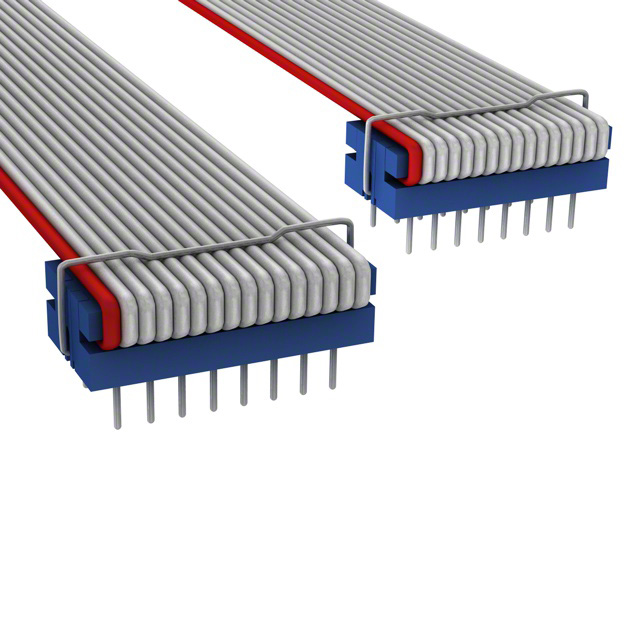

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
