C0RRS-1418M

Active

CW Industries

DIP CABLE - CDR14S/AE14M/CDR14S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR14S/AE14M/CDR14S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

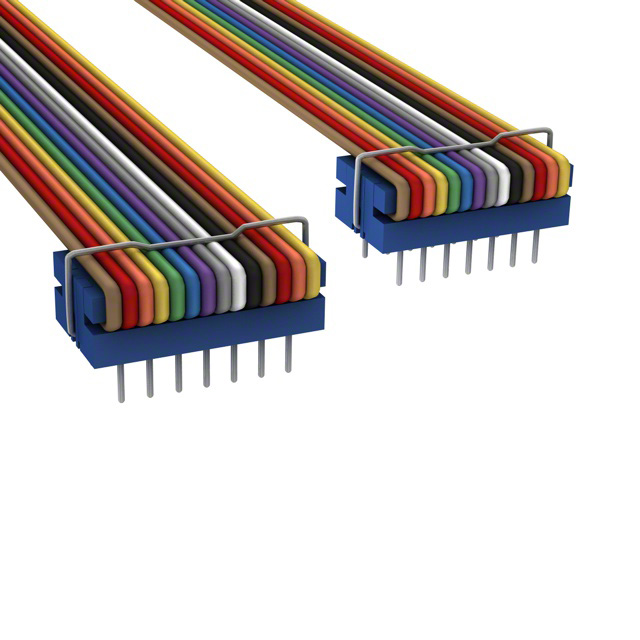

14 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DIP CABLE - CDR16S/AE16M/CDR16S

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Color	Cable Termination	Pitch - Cable	Pitch - Cable	Shielding	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	Usage	Connector Type	Length	Length	Length	Number of Positions
CW Industries C0RRS-1636M	16	0.1 in	2.54 mm	Multiple, Ribbon	IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin	3 ft	914.4 mm	Board In, Socket (0.3")	DIP to DIP, Reversed
CW Industries C0RRS-1606M	16	0.1 in	2.54 mm	Multiple, Ribbon	IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin			Board In, Socket (0.3")	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '
CW Industries C0RRS-1606G	16	0.1 in	2.54 mm		IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin			Board In, Socket (0.3")	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '
CW Industries C0RRS-1618M	16	0.1 in	2.54 mm	Multiple, Ribbon	IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin	1.5 ft	457.2 mm	Board In, Socket (0.3")	DIP to DIP, Reversed
CW Industries C0RRS-1636G	16	0.1 in	2.54 mm		IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin	3 ft	914.4 mm	Board In, Socket (0.3")	DIP to DIP, Reversed
CW Industries C0RRS-1418M		0.1 in	2.54 mm	Multiple, Ribbon	IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin	1.5 ft	457.2 mm	Board In, Socket (0.3")	DIP to DIP, Reversed				14
CW Industries C0RRS-1406M		0.1 in	2.54 mm	Multiple, Ribbon	IDC	0.05 "	1.27 mm	Unshielded	Strain Relief	2	2.54 µm	100 µin	Tin			Board In, Socket (0.3")	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '	14
