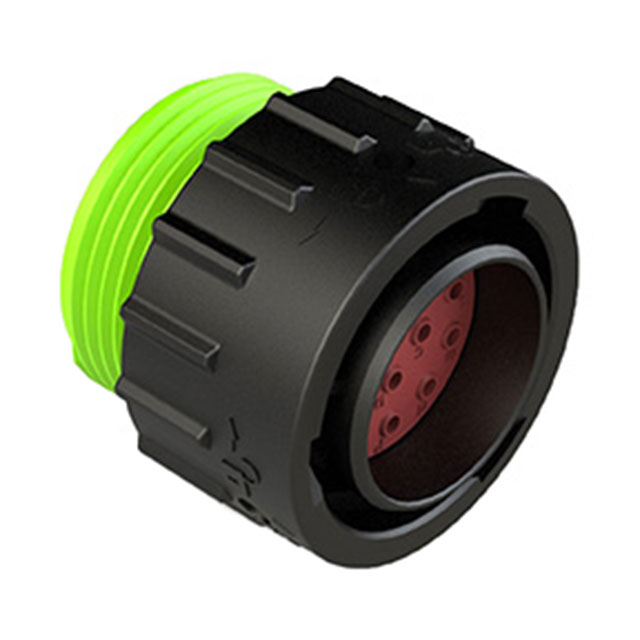

AHDP06-18-14PN-WTA

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 14POS INLINE

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP06-18-14PN-WTA

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	18-14
Shielding	Unshielded
Type	For Male Pins

AHDP06 Series

...

Part	Number of Positions	Contact Shape	Shielding	Insert Material	Fastening Type	Mounting Type	Type	Housing Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Shell Size - Insert	Note	Connector Type	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Primary Material	Features	Contact Size
Amphenol Sine Systems Corp AHDP06-24-07SN-WTACL22	7	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-7	Contacts Not Included	Plug Housing	4 16
Amphenol Sine Systems Corp AHDP06-24-31SR-STA	31	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP68 IP69K	Keyed		Contacts Not Included	Plug Housing	16	31	24	Plastic	Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-19PN-SRA	19	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-19	Contacts Not Included	Plug Housing	12 16				Coupling Nut	6 13
Amphenol Sine Systems Corp AHDP06-18-21SN-WTA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed		Contacts Not Included	Plug Housing	20	21	18		Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-31PR-SRA	31	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed		Contacts Not Included	Plug Housing	16	31	24		Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-21SN-SRA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-21	Contacts Not Included	Plug Housing	12 16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-21SN-WTA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-21	Contacts Not Included	Plug Housing	12 16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-18-14PN-WTA	14	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	18-14	Contacts Not Included	Plug Housing	16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-18-06SN-SRAC030	2	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	18-6	Contacts Not Included	Plug Housing	4 4				Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-07SN-STA	7	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP68 IP69K	Keyed	24-7	Contacts Not Included	Plug Housing	8 12			Plastic
