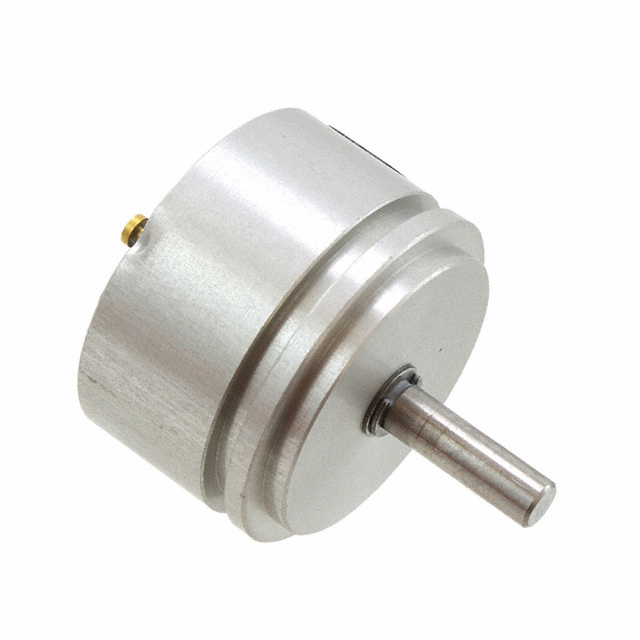

6537S-1-102

Active

Bourns Inc.

POT 1K OHM 1W PLASTIC LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 1K OHM 1W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Mounting Type	Temperature Coefficient	Size - Body [diameter]	Size - Body [diameter]	Termination Style	Rotation	Resistive Material	Actuator Length [x]	Actuator Length	Adjustment Type	Number of Gangs	Resistance (Ohms)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Taper	Tolerance	Resistance (Ohms)
Bourns Inc. 6537S-1-102	1	Servo Mount	500 ppm/°C	22.23 mm	0.875 "	Solder Turret	Continuous	Conductive Plastic	0.5 in	12.7 mm	User Defined	1	1 kOhms	1 W	3.17 mm	0.1248 in	Round	Linear	10 %
Bourns Inc. 6537S-1-103	1	Servo Mount	500 ppm/°C	22.23 mm	0.875 "	Solder Turret	Continuous	Conductive Plastic	0.5 in	12.7 mm	User Defined	1		1 W	3.17 mm	0.1248 in	Round	Linear	10 %	10k
Bourns Inc. 6537S-1-502	1	Servo Mount	500 ppm/°C	22.23 mm	0.875 "	Solder Turret	Continuous	Conductive Plastic	0.5 in	12.7 mm	User Defined	1	5 kOhms	1 W	3.17 mm	0.1248 in	Round	Linear	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1k Ohm 1 Gang Linear Servo Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
