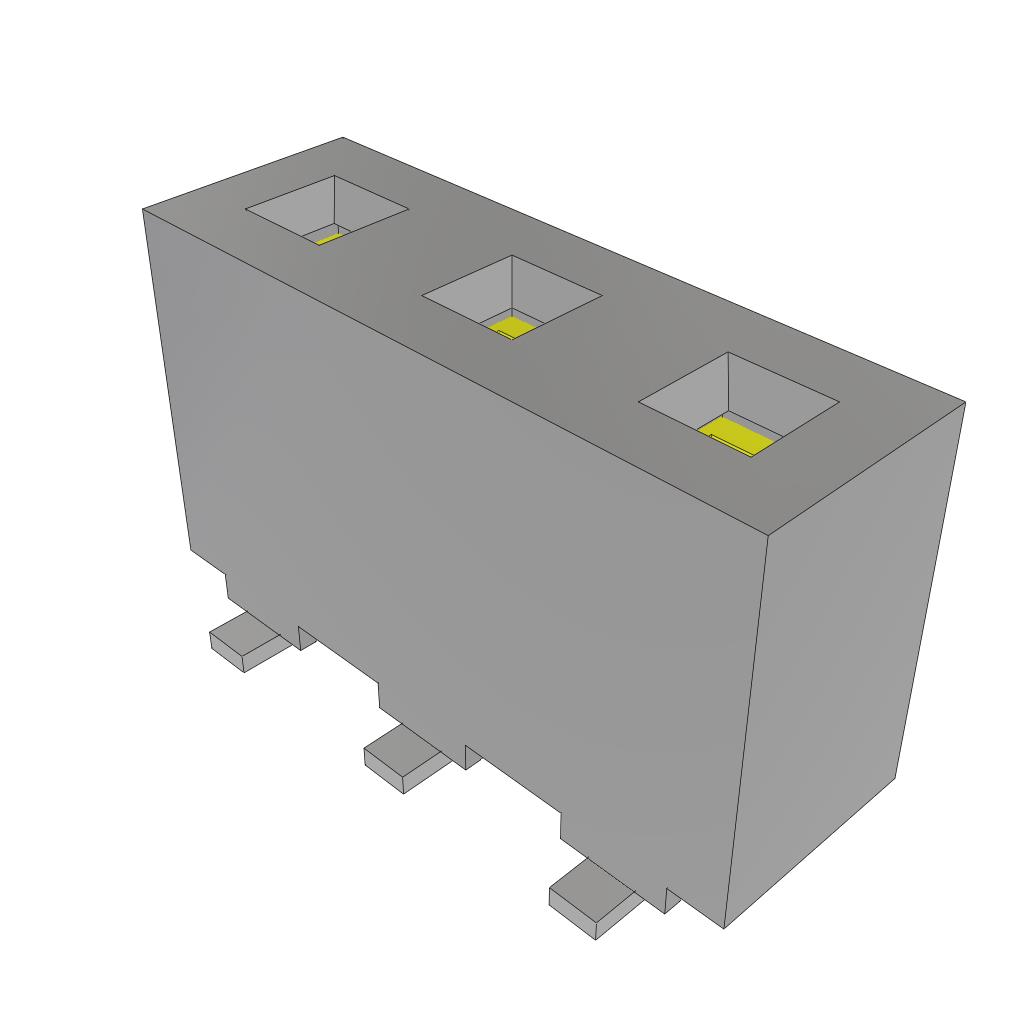

HPF-03-02-T-S

Active

Samtec Inc.

CONN RCPT 3POS 0.2 TIN SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 3POS 0.2 TIN SMD

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Color	Number of Positions Loaded	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Fastening Type	Insulation Material	Contact Type	Connector Type	Contact Finish - Post	Termination	Contact Material	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Features
Samtec Inc. HPF-03-02-T-S	Black	All	1	5.08 mm	0.2 in	8.92 mm	0.351 in	Square	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	Receptacle	Tin	Solder	Beryllium Copper
Samtec Inc. HPF-03-01-T-S	Black	All	1	5.08 mm	0.2 in	8.92 mm	0.351 in	Square	Through Hole	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	Receptacle	Tin	Solder	Beryllium Copper	0.102 in	2.6 mm
Samtec Inc. HPF-03-02-H-S-K-TR	Black	All	1	5.08 mm	0.2 in	8.92 mm	0.351 in	Square	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	Receptacle	Gold	Solder	Beryllium Copper			Gold	Pick and Place
Samtec Inc. HPF-03-02-T-S-LC-K	Black	All	1	5.08 mm	0.2 in	8.92 mm	0.351 in	Square	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	Receptacle	Tin	Solder	Beryllium Copper				Board Lock Pick and Place
Samtec Inc. HPF-03-02-TM-S-LC-K-TR	Black	All	1	5.08 mm	0.2 in	8.92 mm	0.351 in	Square	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	Receptacle	Tin	Solder	Beryllium Copper				Board Lock Pick and Place
