SCS8PT93HPL2PLS03F

Obsolete

Samsung Semiconductor, Inc.

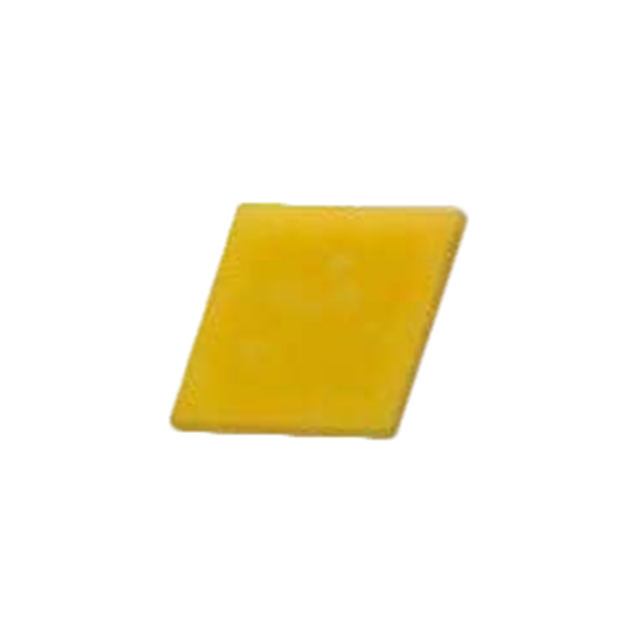

LED LM102A COOL WHITE 6500K SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED LM102A COOL WHITE 6500K SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LM102A White, Cool 6500K 5-Step MacAdam Ellipse 5.9V 150mA 145° 0505 (1313 Metric)

Technical documentation and resources

Part	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Color	CRI (Color Rendering Index)	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Current - Max [Max]	Supplier Device Package	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle
Samsung Semiconductor, Inc. SCS8PT93HPL2PLS03F	103 lm	111 lm	119 lm	5.9 V	Cool, White	80	0505	1313 Metric	125 lm/W	250 mA	SMD	150 mA	0.017 in	0.42 mm	Surface Mount	6500 K	0.053 "	1.34 mm	1.34 mm	0.053 in	145 °
Samsung Semiconductor, Inc. SCS8PT93HPL2PUS03F	103 lm	111 lm	119 lm	5.9 V	Cool, White	80	0505	1313 Metric	125 lm/W	250 mA	SMD	150 mA	0.02 "	0.52 mm	Surface Mount	6500 K	0.053 "	1.34 mm	1.34 mm	0.053 in	145 °
