TRAPC3MX
ActiveSwitchcraft Inc.

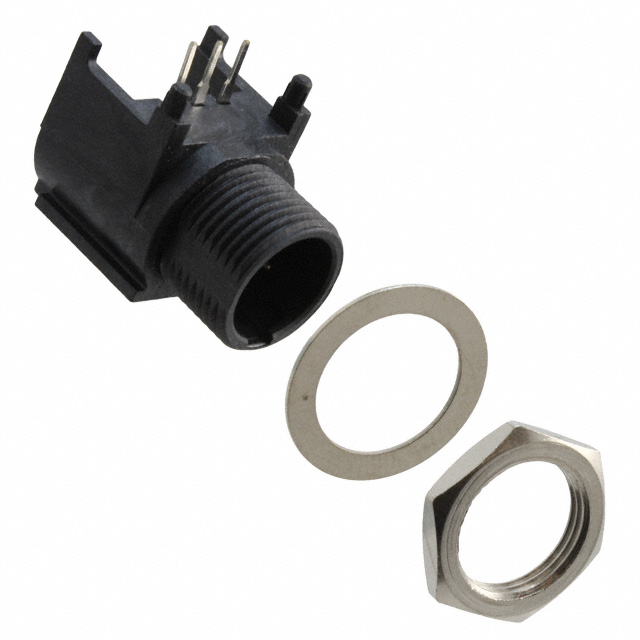

CONN XLR CONNECTOR M 3 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRAPC3MX
ActiveSwitchcraft Inc.
CONN XLR CONNECTOR M 3 POS SOLDER RA THRU-HOLE 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TRAPC3MX | TRAPC3 Series |
|---|---|---|
| Applications | Medical, Testing Equipment & Measurement, Audio | Medical, Testing Equipment & Measurement, Audio |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Board Guide | Board Guide |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shell Size - Insert | Mini XLR | Mini XLR |
| Termination | Solder | Solder |
TRAPC3 Series
CONN RCPT MALE MINI XLR 3P SLDR
| Part | Fastening Type | Orientation | Contact Material | Features | Primary Material | Shell Size - Insert | Applications | Color | Termination | Insert Material | Current Rating (Amps) | Connector Type | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TRAPC3M1X | Latch Lock | Keyed | Brass | Board Guide | Plastic | Mini XLR | Audio, Medical, Testing Equipment & Measurement | Black | Solder | Thermoplastic | 5 A | Male Pins, Receptacle | Through Hole, Right Angle | |
Switchcraft Inc. TRAPC3M1 | Latch Lock | Keyed | Brass | Board Guide | Plastic | Mini XLR | Audio, Medical, Testing Equipment & Measurement | Black | Solder | Thermoplastic | 5 A | Male Pins, Receptacle | Through Hole, Right Angle | |
Switchcraft Inc. TRAPC3MX | Latch Lock | Keyed | Brass | Board Guide | Plastic | Mini XLR | Audio, Medical, Testing Equipment & Measurement | Black | Solder | Thermoplastic | 5 A | Male Pins, Receptacle | Through Hole, Right Angle | Bulkhead - Front Side Nut |
Switchcraft Inc. TRAPC3M | Latch Lock | Keyed | Brass | Board Guide | Plastic | Mini XLR | Audio, Medical, Testing Equipment & Measurement | Black | Solder | Thermoplastic | 5 A | Male Pins, Receptacle | Through Hole, Right Angle | Bulkhead - Front Side Nut |
Switchcraft Inc. TRAPC3MSX | Latch Lock | Keyed | Brass | Board Guide | Plastic | Mini XLR | Audio, Medical, Testing Equipment & Measurement | Black | Solder | Thermoplastic | 5 A | Male Pins, Receptacle | Through Hole, Right Angle | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.37 | |
| 10 | $ 10.29 | |||
| 25 | $ 9.30 | |||
| 50 | $ 8.64 | |||
| 100 | $ 8.04 | |||
| 250 | $ 7.91 | |||
Description
General part information
TRAPC3 Series
3 Position Circular Connector Receptacle, Male Pins Solder
