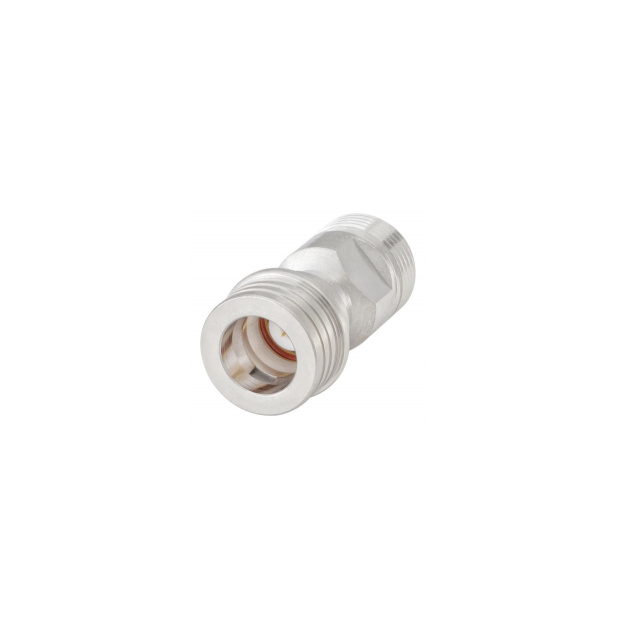

153QS153-K00N5

Active

Rosenberger

QN ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

QN ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	153QS153-K00N5

Adapter Series [Max]	N
Adapter Series [Min]	QN
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, QN Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Insertion Loss	0.17 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mounting Type	Convert From (Adapter End)	Style	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Convert To (Adapter End)	Mating Cycles	Center Contact Plating	Dielectric Material	Conversion Type	Body Material	Fastening Type	Impedance	Adapter Series [Min]	Adapter Series [Max]	Adapter Type	Center Contact Material	Body Finish
Rosenberger 153QS153-K00N5	Free Hanging (In-Line)	Female Socket N Jack	Straight	11 GHz	125 °C	-40 °C	0.17 dB	Male Pin QN Plug	500	Gold	Polytetrafluoroethylene (PTFE)	Between Series	Brass	Snap-On	50 Ohms	QN	N	Plug to Jack	Beryllium Copper	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To QN Plug, Male Pin 50 Ohms
