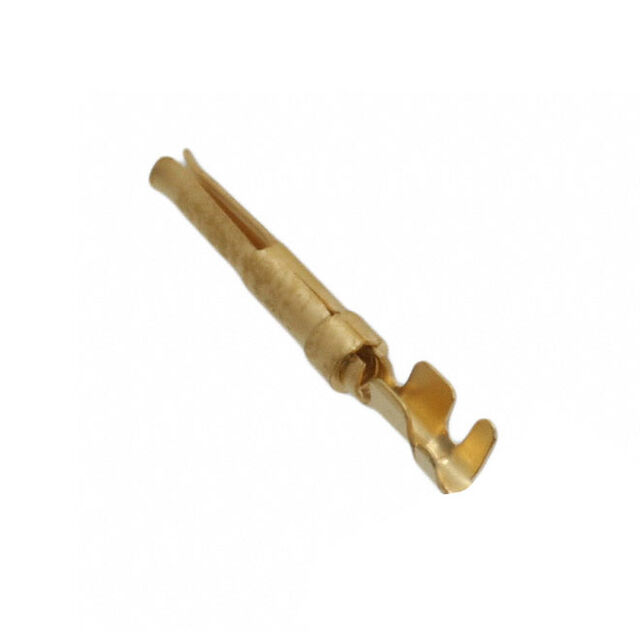

5-66504-6

Obsolete

TE Connectivity Raychem Cable Protection

CONN SOCKET 20-24AWG GOLD CRIMP

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN SOCKET 20-24AWG GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

D-Sub Contacts SOCKET CONTACT 20DF

Part	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Material	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
TE Connectivity Raychem Cable Protection 1658537-5	Socket	20 AWG	24 AWG	Crimp	Phosphor Bronze	Gold	Stamped	Flash
TE Connectivity Raychem Cable Protection 5-66504-6	Socket	20 AWG	24 AWG	Crimp	Phosphor Bronze	Gold	Stamped	Flash
TE Connectivity Raychem Cable Protection 3-66507-0	Pin	24 AWG	28 AWG	Crimp	Brass	Gold	Stamped		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 66569-3	Socket			Solder Cup	Phosphor Bronze	Gold	Stamped		0.76 Ám	30 Áin	18 AWG
TE Connectivity Raychem Cable Protection 66570-8	Pin			Solder Cup	Brass	Gold	Stamped		0.76 Ám	30 Áin	18 AWG
TE Connectivity Raychem Cable Protection 66507-9	Pin	24 AWG	28 AWG	Crimp	Brass	Gold	Stamped		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 1658543-1	Socket	22 AWG	26 AWG	Crimp	Phosphor Bronze	Gold	Stamped		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 66570-2	Pin			Solder Cup	Brass	Gold	Stamped		0.76 Ám	30 Áin	18 AWG
TE Connectivity Raychem Cable Protection 5066682-6	Pin	24 AWG	28 AWG	Crimp	Brass	Gold	Stamped	Flash
TE Connectivity Raychem Cable Protection 66504-3	Socket	20 AWG	24 AWG	Crimp	Phosphor Bronze	Gold	Stamped		0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Sub Contacts SOCKET CONTACT 20DF
