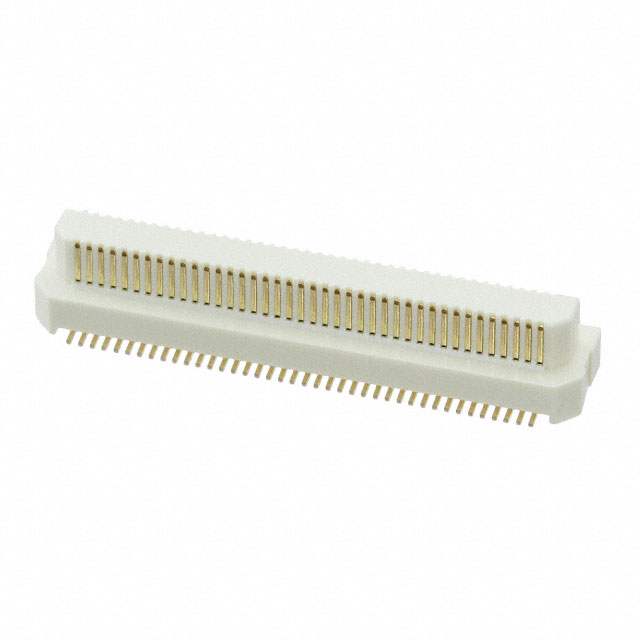

AXK6S80547YG

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK6S80547YG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5.5 mm, 8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Number of Positions	Connector Type
Panasonic Electric Works AXK6S80547YG	2	0.169 in	4.3 mm	5 mm 5.5 mm 8 mm	0.5 mm	0.02 in	Gold	Surface Mount	80	Header Outer Shroud Contacts
Panasonic Electric Works AXK6S80547YA	2	0.169 in	4.3 mm	5 mm 5.5 mm 8 mm	0.5 mm	0.02 in	Gold	Surface Mount	80	Header Outer Shroud Contacts
