15380-10PG-331

Active

Conxall/Switchcraft

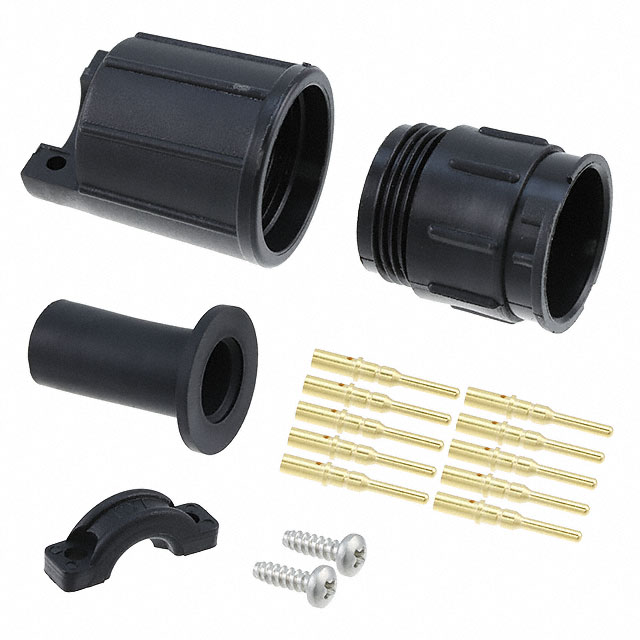

CONN RCPT MALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 10POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.01

General part information

10 Position Circular Connector Receptacle, Male Pins Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT MALE 10POS GOLD CRIMP

Part	Voltage Rating	Connector Type	Color	Number of Positions	Features	Contact Finish - Mating	Orientation	Termination	Mounting Type	Fastening Type	Primary Material	Ingress Protection	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 15380-10PG-331	600 V	Male Pins, Receptacle	Black	10	Backshell, Cable Clamp	Gold	Keyed	Crimp	Free Hanging (In-Line)	Bayonet Lock	Plastic	Weathertight	Brass	-40 °C	115 °C	Unshielded	9.65 mm	0.31 in, 0.38 in	7.87 mm	Nylon, Polyamide (PA)
Conxall/Switchcraft 15380-10PG-326	600 V	Male Pins, Receptacle	Black	10	Backshell, Cable Clamp	Gold	Keyed	Crimp	Free Hanging (In-Line)	Bayonet Lock	Plastic	Weathertight	Brass	-40 °C	115 °C	Unshielded				Nylon, Polyamide (PA)	0.26 in	7.62 mm	0.3 in	6.6 mm
Conxall/Switchcraft 15380-10PG-321	600 V	Male Pins, Receptacle	Black	10	Backshell, Cable Clamp	Gold	Keyed	Crimp	Free Hanging (In-Line)	Bayonet Lock	Plastic	Weathertight	Brass	-40 °C	115 °C	Unshielded				Nylon, Polyamide (PA)					0.21 in	5.33 mm	6.35 mm	0.25 in
