627-2WK2222-7NA

Active

EDAC Inc.

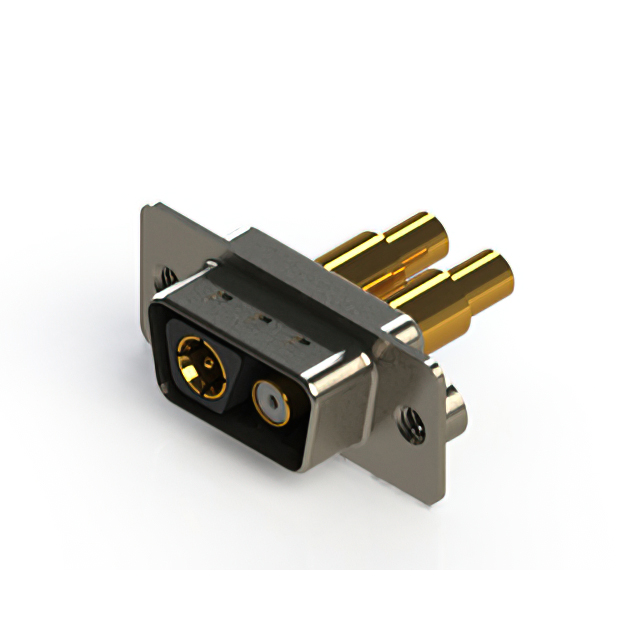

CONN D-SUB PLUG 2POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-2WK2222-7NA

Active

EDAC Inc.

CONN D-SUB PLUG 2POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-2WK2222-7NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Voltage Rating	125 VDC

627-2WK Series

...

Part	Number of Rows	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Connector Style	Features	Dielectric Material	Termination	Contact Finish Thickness	Contact Type	Voltage Rating	Flange Feature	Contact Material	Color	Contact Finish	Shell Material, Finish	Connector Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-2WK2224-4N6	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	40 A	UL94 V-0	Combo D-Sub	Board Lock Grounding Indents Shielded	Polyester Thermoplastic	Solder	Flash	Power	125 VDC	4-40	Copper Alloy	Black	Gold	Nickel Plated Steel	Female Sockets Male Pins Plug	2	Panel Mount Through Hole
EDAC Inc. 627-2WK2222-4T2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	40 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic		Flash	Power	125 VDC	4-40 Board Side	Copper Alloy	Black	Gold		Female Sockets Male Pins Plug	2	Free Hanging (In-Line)
EDAC Inc. 627-2WK2624-3T2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	30 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic	Solder		Power	125 VDC	4-40 Board Side	Copper Alloy	Black	Gold		Female Sockets Male Pins Plug	2	Panel Mount Through Hole	0.76 Ám	30 Áin
EDAC Inc. 627-2WK2624-3TA	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	30 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic	Solder		Power	125 VDC	Board Side (M3)	Copper Alloy	Black	Gold		Female Sockets Male Pins Plug	2	Panel Mount Through Hole	0.76 Ám	30 Áin
EDAC Inc. 627-2WK2224-3T1	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	30 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic	Solder	Flash	Power	125 VDC	Housing/Shell (Unthreaded)	Copper Alloy	Black	Gold		Female Sockets Male Pins Plug	2	Through Hole
EDAC Inc. 627-2WK2224-4N5	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	40 A	UL94 V-0	Combo D-Sub	Board Lock Grounding Indents Shielded	Polyester Thermoplastic	Solder	Flash	Power	125 VDC	4-40 Board Side	Copper Alloy	Black	Gold	Nickel Plated Steel	Female Sockets Male Pins Plug	2	Through Hole
EDAC Inc. 627-2WK2222-7NA	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C		UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic		Flash	Coax	125 VDC	Board Side (M3)	Copper Alloy	Black	Gold	Nickel Plated Steel	Female Sockets Male Pins Plug	2	Free Hanging (In-Line)
EDAC Inc. 627-2WK2624-4T2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	40 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic	Solder		Power	125 VDC	4-40 Board Side	Copper Alloy	Black	Gold		Female Sockets Male Pins Plug	2	Panel Mount Through Hole	0.76 Ám	30 Áin
EDAC Inc. 627-2WK2624-2NB	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	20 A	UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic	Solder		Power	125 VDC	Board Side (M3)	Copper Alloy	Black	Gold	Nickel Plated Steel	Female Sockets Male Pins Plug	2	Panel Mount Through Hole	0.76 Ám	30 Áin
EDAC Inc. 627-2WK2222-5N1	1	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C		UL94 V-0	Combo D-Sub	Grounding Indents Shielded	Polyester Thermoplastic		Flash	Power	125 VDC	Housing/Shell (Unthreaded)	Copper Alloy	Black	Gold	Nickel Plated Steel	Female Sockets Male Pins Plug	2	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.89

Description

General part information

627-2WK Series

2 (Coax) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
