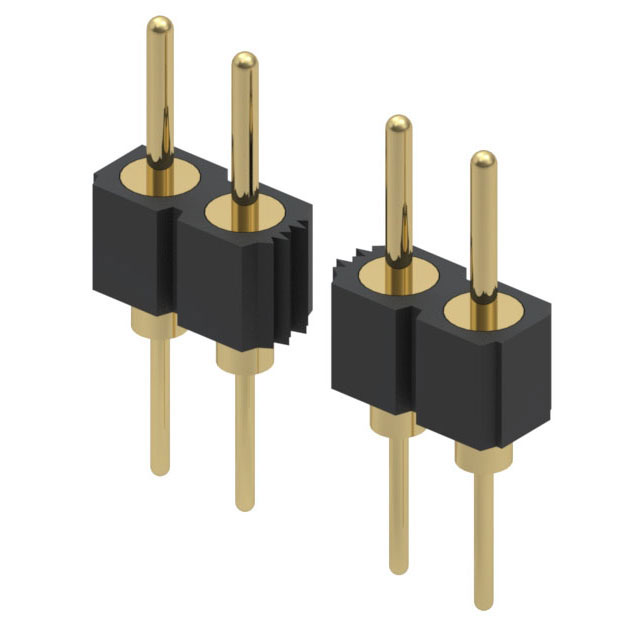

350-10-116-00-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

350-10-116-00-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	350-10-116-00-001000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	4.22 mm
Contact Length - Mating	0.166 in
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.477 in
Overall Contact Length	12.12 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

350-10 Series

...

Part	Contact Material	Contact Shape	Insulation Color	Contact Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Termination	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Shrouding	Mounting Type	Fastening Type	Contact Finish - Mating	Contact Length - Post	Number of Positions
Mill-Max Manufacturing Corp. 350-10-109-00-006000	Brass Alloy	Circular	Black	Male Pin	9	3.61 mm	0.142 in	Header	10 çin	0.25 çm	All	10 mm	0.394 in	Solder	0.11 in	2.79 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold
Mill-Max Manufacturing Corp. 350-10-108-00-001000	Brass Alloy	Circular	Black	Male Pin	8	4.22 mm	0.166 in	Header	10 çin	0.25 çm	All	12.12 mm	0.477 in	Solder		4 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold	0.157 in
Mill-Max Manufacturing Corp. 350-10-130-00-106000	Brass Alloy	Circular	Black	Male Pin	30	3.61 mm	0.142 in	Header	10 çin	0.25 çm	All			Solder			10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Surface Mount	Push-Pull	Gold
Mill-Max Manufacturing Corp. 350-10-115-00-001000	Brass Alloy	Circular	Black	Male Pin	15	4.22 mm	0.166 in	Header	10 çin	0.25 çm	All	12.12 mm	0.477 in	Solder		4 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold	0.157 in
Mill-Max Manufacturing Corp. 350-10-138-00-106000	Brass Alloy	Circular	Black	Male Pin	38	3.61 mm	0.142 in	Header	10 çin	0.25 çm	All			Solder			10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Surface Mount	Push-Pull	Gold
Mill-Max Manufacturing Corp. 350-10-103-00-006000	Brass Alloy	Circular	Black	Male Pin		3.61 mm	0.142 in	Header	10 çin	0.25 çm	All	10 mm	0.394 in	Solder	0.11 in	2.79 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold
Mill-Max Manufacturing Corp. 350-10-154-00-001000	Brass Alloy	Circular	Black	Male Pin	54	4.22 mm	0.166 in	Header	10 çin	0.25 çm	All	12.12 mm	0.477 in	Solder		4 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold	0.157 in
Mill-Max Manufacturing Corp. 350-10-118-00-107000	Brass Alloy	Circular	Black	Male Pin	18	3.61 mm	0.142 in	Header	10 çin	0.25 çm	All			Solder			10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Surface Mount	Push-Pull	Gold
Mill-Max Manufacturing Corp. 350-10-116-00-001000	Brass Alloy	Circular	Black	Male Pin		4.22 mm	0.166 in	Header	10 çin	0.25 çm	All	12.12 mm	0.477 in	Solder		4 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold	0.157 in	16
Mill-Max Manufacturing Corp. 350-10-124-00-006000	Brass Alloy	Circular	Black	Male Pin	24	3.61 mm	0.142 in	Header	10 çin	0.25 çm	All	10 mm	0.394 in	Solder	0.11 in	2.79 mm	10 çin	0.25 çm	Gold	1	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Through Hole	Push-Pull	Gold
