T590N16TOFXPSA1

Obsolete

Infineon Technologies

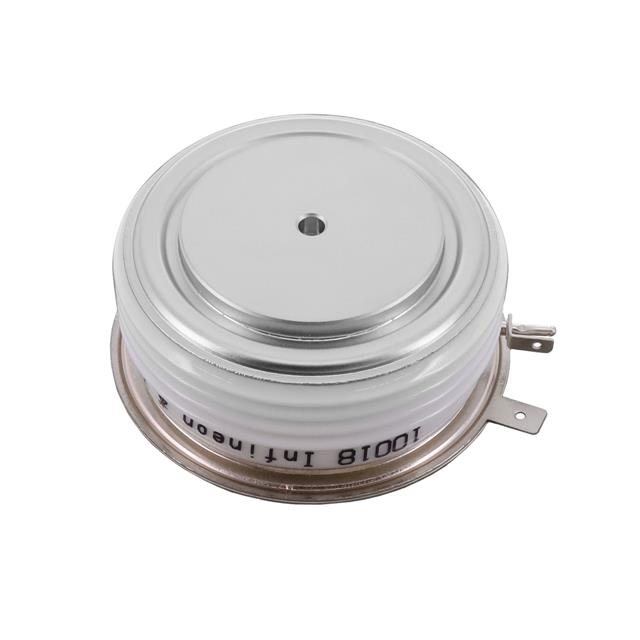

SCR MODULE 1.8KV 1250A DO-200AB

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 1.8KV 1250A DO-200AB

Technical Specifications

Parameters and characteristics for this part

Specification	T590N16TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9400 A
Current - On State (It (AV)) (Max)	590 A
Current - On State (It (RMS)) (Max) [Max]	1250 A
Mounting Type	Clamp On
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	B-PUK, DO-200AB
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	1.8 kV

Part	Voltage - Off State	Package / Case	Current - On State (It (AV)) (Max)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Structure	Number of SCRs, Diodes	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Infineon Technologies T590N16TOFXPSA1	1.8 kV	B-PUK DO-200AB	590 A	2.2 V	Clamp On	125 °C	-40 °C	250 mA	Single	1 SCR	1250 A	300 mA	9400 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.8 kV 1250 A Single Clamp On DO-200AB, B-PUK
