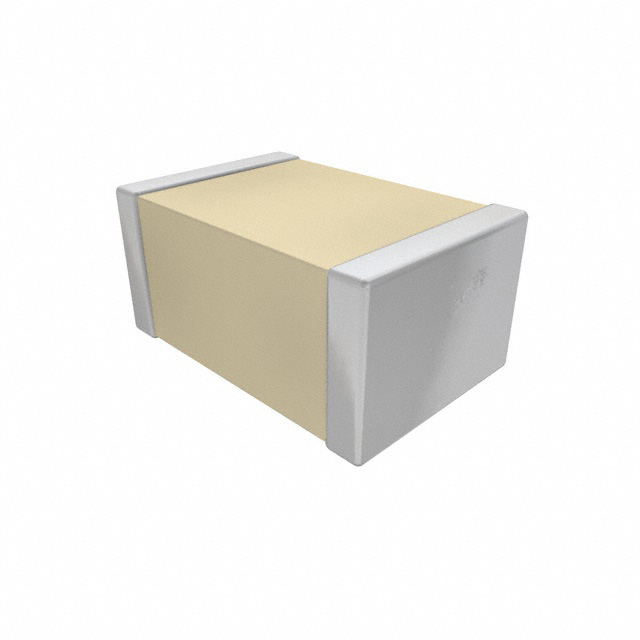

C1812F394K2RAC7800

Active

KEMET

CAP CER 0.39UF 200V X7R 1812

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC1812F394K2RACTU Datasheet

C1812F394K2RAC7800

Active

KEMET

CAP CER 0.39UF 200V X7R 1812

Deep-Dive with AI

DocumentsC1812F394K2RACTU Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1812F394K2RAC7800

Applications	General Purpose
Capacitance	0.39 µF
Features	Open Mode
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.083 in
Thickness (Max) [Max]	2.1 mm
Tolerance	10 %
Voltage - Rated	200 V

C1812F Series

Part	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Capacitance	Voltage - Rated	Temperature Coefficient	Mounting Type	Tolerance	Applications	Features	Thickness (Max)	Thickness (Max)	Thickness (Max) [Max]	Thickness (Max) [Max]	Ratings
KEMET C1812F104K5RAC7800	0.043 "	1.1 mm	-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	100000 pF	50 VDC	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode
KEMET C1812F474M1RAC7800			-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.47 µF	100 V	X7R	MLCC Surface Mount	20 %	General Purpose	Open Mode	1.2 mm	0.047 in
KEMET C1812F394K2RAC7800			-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.39 µF	200 V	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode			0.083 in	2.1 mm
KEMET C1812F224K1RAC7800	0.043 "	1.1 mm	-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.22 µF	100 V	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode
KEMET C1812F474K5RACAUTO	0.043 "	1.1 mm	-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.47 µF	50 VDC	X7R	MLCC Surface Mount	10 %	Automotive	Open Mode					AEC-Q200
KEMET C1812F105K1RACAUTO			-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	1 µF	100 V	X7R	MLCC Surface Mount	10 %	Automotive	Open Mode			0.087 in	2.2 mm	AEC-Q200
KEMET C1812F334K1RAC7800	0.043 "	1.1 mm	-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.33 µF	100 V	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode
KEMET C1812F104K3RAC7800	0.043 "	1.1 mm	-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	100000 pF	25 VDC	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode
KEMET C1812F474K1RAC7800			-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	0.47 µF	100 V	X7R	MLCC Surface Mount	10 %	General Purpose	Open Mode	1.2 mm	0.047 in
KEMET C1812F105K5RACAUTO			-55 °C	125 °C	3.2 mm	0.177 in	4.5 mm	0.126 "	1812 (4532 Metric)	1 µF	50 VDC	X7R	MLCC Surface Mount	10 %	Automotive	Open Mode	1.9 mm		0.075 in		AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.67

Description

General part information

C1812F Series

0.39 µF ±10% 200V Ceramic Capacitor X7R 1812 (4532 Metric)
