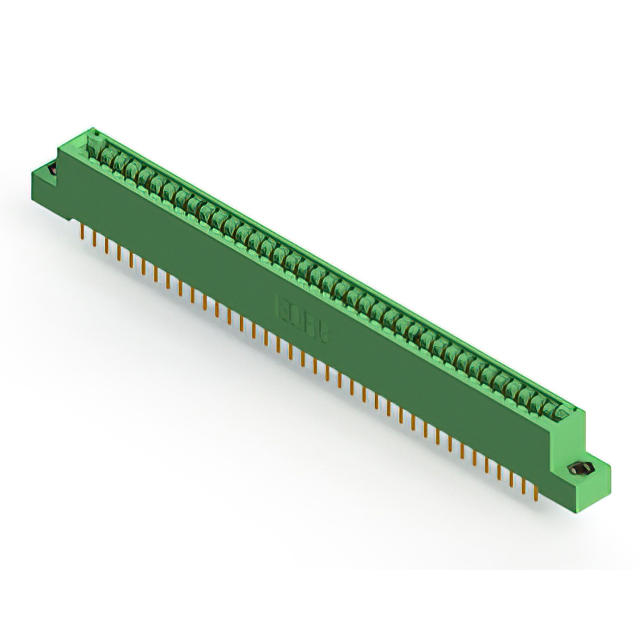

846-076-521-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-076-521-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-076-521-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-076 Series
...
| Part | Number of Rows | Features | Contact Finish | Flange Feature | Flange Feature | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Read Out | Number of Positions | Material - Insulation | Color | Card Type | Gender | Termination Rows | Contact Type | Contact Material | Termination | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Card Extender | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | ||
EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | |||||
EDAC Inc. | 2 | Gold | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | |||||
EDAC Inc. | 2 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | |||||
EDAC Inc. | 2 | Card Extender | Gold | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder Eyelet(s) | 0.125 in | 3.18 mm | 0.116 in | 2.95 mm | ||
EDAC Inc. | 2 | Card Extender | Gold | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Wire Wrap | 0.125 in | 3.18 mm | ||||||
EDAC Inc. | 2 | Card Extender | Gold | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder Eyelet(s) | 0.125 in | 3.18 mm | ||||
EDAC Inc. | 2 | Gold | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm | ||||
EDAC Inc. | 2 | Gold | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Through Hole | 10 Áin | 0.25 Ám | 38 | Dual | 76 | Diallyl Phthalate (DAP) | Green | Non Specified - Dual Edge | Female | 2 | Cantilever | Copper Alloy | Solder | 0.125 in | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 84.47 | |
Description
General part information
846-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
