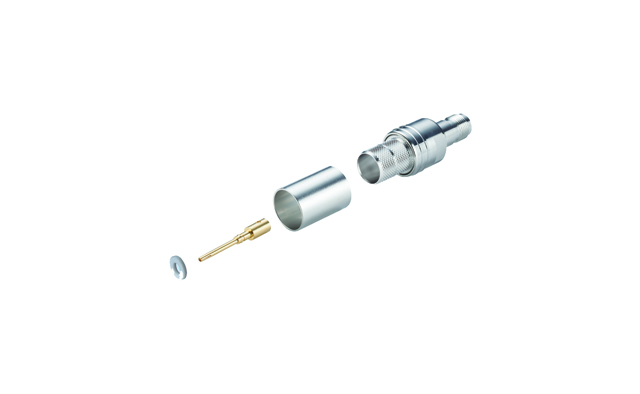

TC-600-TF-X

Active

McGill Microwave Systems

TNC-FEMALE (JACK) CRIMP CONNECTO

TC-600-TF-X

Active

McGill Microwave Systems

TNC-FEMALE (JACK) CRIMP CONNECTO

Description Specifications Series Pricing CAD Documents

Description

General part information

TC-600 Series

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical Specifications

Parameters and characteristics for this part

Specification	TC-600-TF-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-600
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Crimp
Voltage Rating	750 VDC

TC-600 Series

Part	Body Material	Mating Cycles	Voltage Rating	Body Finish	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Cable Group	Center Contact Material	Frequency - Max	Connector Style	Impedance	Housing Color	Shield Termination	Contact Termination	Fastening Type	Mounting Type	Connector Type	Number of Ports	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	Insertion Loss
McGill Microwave Systems TC-600-TF-X	Brass	500 cycles	750 VDC	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Gold	LMR-600	Phosphor Bronze	6000 MHz	TNC	50 Ohm	Silver	Crimp	Solder	Threaded	Free Hanging (In-Line)	Female Socket Jack	1
McGill Microwave Systems TC-600-UM-X

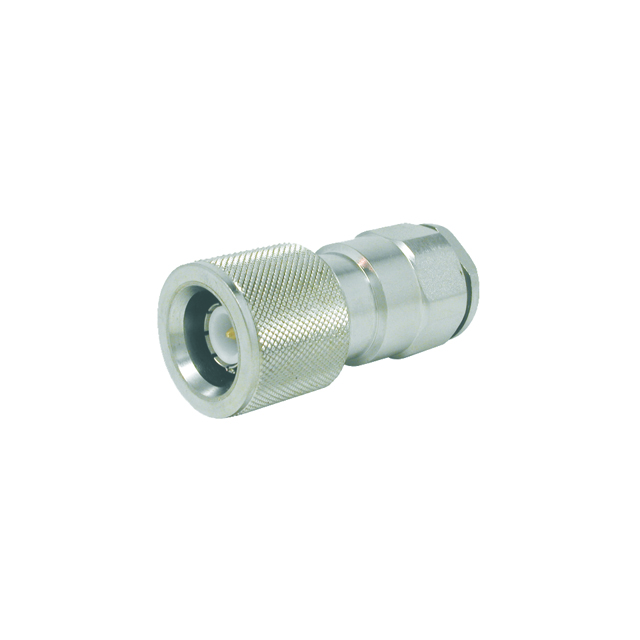

McGill Microwave Systems TC-600-QDSM	Brass		1000 V	Tri-Metal	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Gold	LMR-600	Beryllium Copper	2.5 GHz	QDS	50 Ohm	Silver	Clamp	Solder	Snap-On	Free Hanging (In-Line)	Male Pin Plug	1
McGill Microwave Systems TC-600-TM-RA-D	Brass	500 cycles	500 V	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Gold	LMR-600	Brass	6000 MHz	TNC	50 Ohm	Silver	Crimp	Solder	Threaded	Free Hanging (In-Line) Right Angle	Male Pin Plug	1
McGill Microwave Systems TC-600-NFC-BH	Brass		1000 V	Silver	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Gold	LMR-600	Brass	2.5 GHz	N Type	50 Ohm	Silver	Clamp	Solder	Threaded	Panel Mount	Female Socket Jack	1	Bulkhead Front Side Nut
McGill Microwave Systems TC-600-716FC	Brass		2700 V	Silver	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Silver	LMR-600	Beryllium Copper	2.5 GHz	7/16 DIN	50 Ohm	Silver	Clamp	Solder	Threaded	Free Hanging (In-Line)	Female Socket Plug	1
McGill Microwave Systems TC-600-TM-X	Brass	500 cycles	500 V	White Bronze	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	Gold	LMR-600	Brass	6000 MHz	TNC	50 Ohm	Silver	Crimp	Solder	Threaded	Free Hanging (In-Line)	Male Pin Plug	1
McGill Microwave Systems TC-600-716M-X	Brass			White Bronze	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Silver	LMR-600	Beryllium Copper Brass	6000 MHz	7/16 DIN	50 Ohm	Silver	Crimp	Solder	Threaded	Free Hanging (In-Line)	Male Pin Plug	1		Dust Tight Waterproof	IP67	0.05 dB

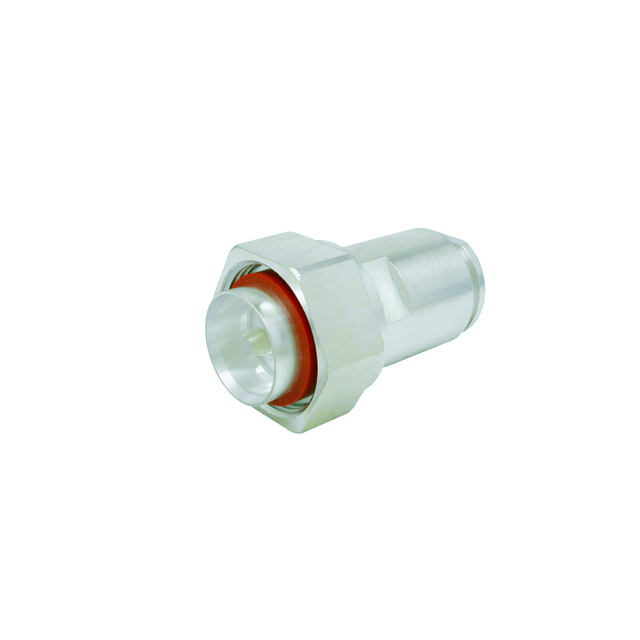

McGill Microwave Systems TC-600-716MC	Brass		2700 V	Silver	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Silver	LMR-600	Beryllium Copper	2.5 GHz	7/16 DIN	50 Ohm	Silver	Clamp	Solder	Threaded	Free Hanging (In-Line)	Male Pin Plug	1
McGill Microwave Systems TC-600-HNMC	Brass		1500 V	Nickel	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Silver	LMR-600	Brass	4 GHz	HN Type	50 Ohm	Silver	Clamp	Solder	Threaded	Free Hanging (In-Line)	Male Pin Plug	1
